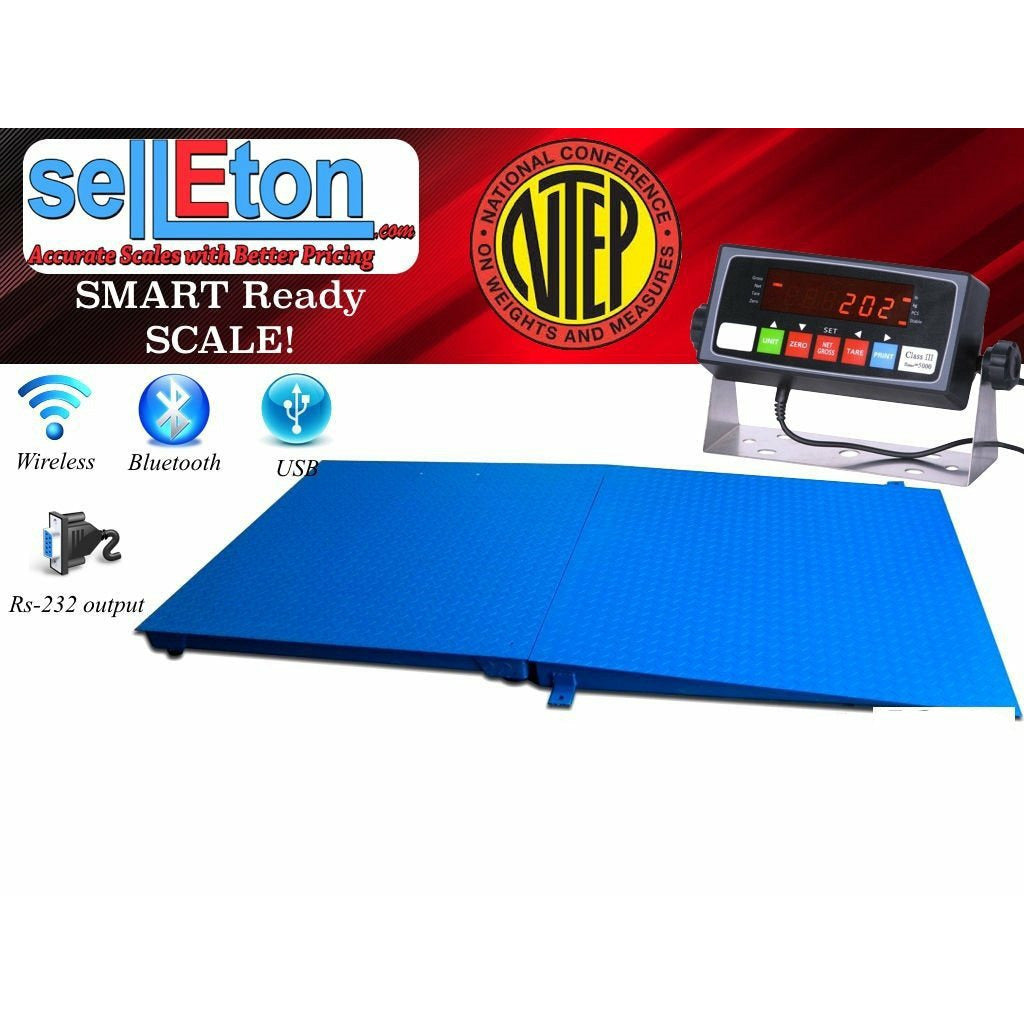

Prime Scales NTEP 5' x 7' (60'' x 84'') Selleton Floor scale with Ramp 10,000 lbs x 2 lb/ Industrial

Prime Scales NTEP 5' x 7' (60'' x 84'') Selleton  Floor scale with Ramp 10,000 lbs x 2 lb/ Industrial

Are you facing challenges in managing heavy load measurements accurately and efficiently in your industrial operations?

Our SellEton NTEP 5' x 7' Floor Scale with Ramp is designed to address just that. Engineered for robustness and precision, this scale is ideal for trade and commercial applications where legal-for-trade certification is mandatory. NTEP approval assures you of compliance and accuracy, making this scale a critical tool for businesses in recycling centers or those shipping large products. Its heavy-duty construction supports rigorous daily use without compromising performance.

Key Benefits:

• Heavy-Duty Construction: Features a tube-channel frame and a rugged diamond deck treadplate, ensuring durability and long-term reliability.
• Precision Weighing: Equipped with four alloy steel shear beam load cells, offering precise measurements with a capacity of up to 10,000 lbs and a readability of 2 lbs.
• Versatile Connectivity: This kit includes a stainless steel junction box with a signal trim board and 15' load cell cable, facilitating easy setup and integration into your existing systems.
• Convenient Loading: It comes with a ramp that makes loading straightforward. This is ideal for heavy or bulky items, enhancing operational efficiency.
• Adjustable Setup: Four adjustable swivel steel feet allow optimal leveling and stability on uneven surfaces.
• Reliable Operation: This product features a SellEton PS-IN202 NTEP Certified Indicator with lb/kg options, powered by a rechargeable battery for uninterrupted use.

Indicator Key Features:

• Ease of Use: Simple calibration and operation process.
• Scale Base Compatibility: Works with any scale base.
• Remote Display Capability: This can be a remote display through slave mode.
• Connectivity Options: Offers connections for printers, scoreboards, and computers, including a mode for livestock auctions.
• Power Flexibility: Operates on an external AC/DC adapter or a rechargeable battery.
• Mounting Versatility: Comes with a stainless steel bracket for mounting on a table or wall.

Indicator Specifications:

• Display: 1.5-inch super large LED display.
• A/D Conversion Rate: Configurable.
• Load Cell Compatibility: Supports power for eight 350-ohm load cells.
• Units: Measurements in pounds (Lb) or kilograms (Kg).
• Operation: 6-button interface.
• Communication Port: RS-232 x 1.
• Power Supply: 110v cord.
• Mounting Bracket: Stainless steel for table stand or wall mount.
• Size: 9.3 inches x 6.5 inches x 2.8 inches.

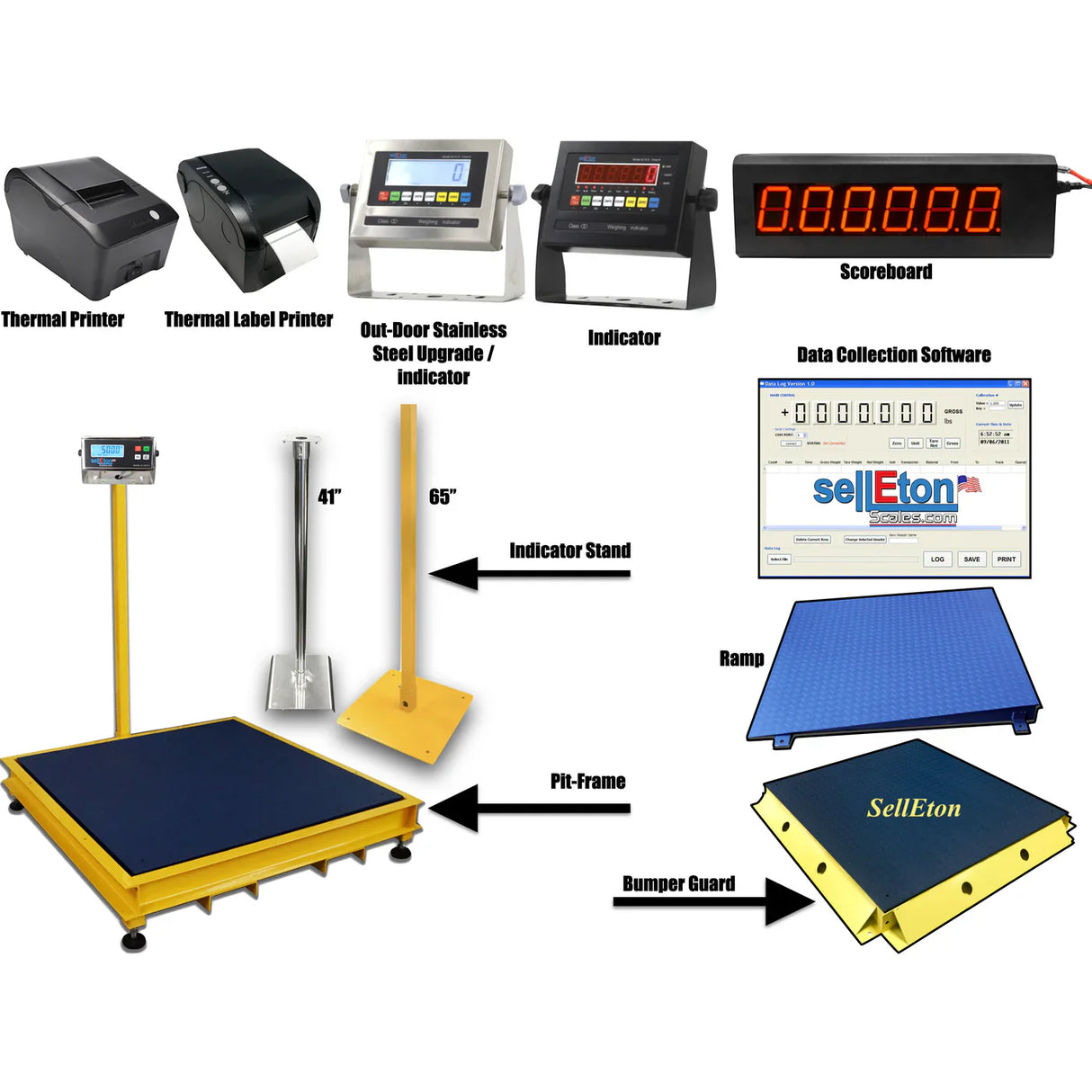

Customization Options for the SL-800-Series Floor Scale

Enhance your operations with a range of add-on features designed to meet your specific needs:

• Printer Integration: Easily attach a printer for instant weight documentation, streamlining record-keeping processes.

• Scoreboard Options: Opt from six sizes of scoreboards for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.

• Pit-Frame Installation: Choose between a permanent, in-ground pit frame installation or versatile industrial portable pit frames for flexible placement.

• Data Collection Software: Utilize our specialized software to track and manage weight records efficiently and efficiently.

• Ramp Access: Implement optional ramps to facilitate simple and safe loading and unloading using carts or pallet jacks.

• Indicator Stands: Select from various stands to ensure your indicator is optimally positioned for ease of use and visibility.

• Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our SL-7510-SS-C-EX Explosion Proof Indicator, preventing ignition in explosive atmospheres.

• Water-Resistant Upgrades: Enhance your scale's resilience in outdoor or moist conditions, ensuring continuous performance and durability.

• Bumper Guards: Install bumper guards to shield your scale from accidental impacts with forklifts or other heavy machinery.

• Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.

Custom Manufacturing

f you need custom-made scales, SellEton Scales can design and manufacture scales in any size using materials such as carbon steel, galvanized steel, stainless steel, and aluminum.

By investing in our SellEton NTEP 5' x 7' Floor Scale with Ramp, you'll streamline your weighing processes and gain peace of mind with enhanced accuracy and regulatory compliance. Picture the confidence you’ll have with each weigh-in, knowing that every measurement supports operational optimization and smooth dispute resolution. Don’t let inaccurate measurements limit your business’s potential. Elevate your industrial weighing capabilities today and experience the benefits of precision and reliability in every load.

For more information or to discuss your specific requirements, please reach out to our sales team. We're here to assist you in finding the ideal weighing solution for your industrial needs.

Important Note:

If you plan to use the scale outdoors, it’s important to use a Stainless Steel indicator, Stainless Steel Load Cells, and a Stainless Steel Junction Box. These components ensure rust resistance and help reduce errors due to environmental factors.

Please note that our scales are not waterproof in their standard form. However, we offer an upgrade to make them suitable for use in rainy or humid conditions, ensuring dependable performance and durability.
