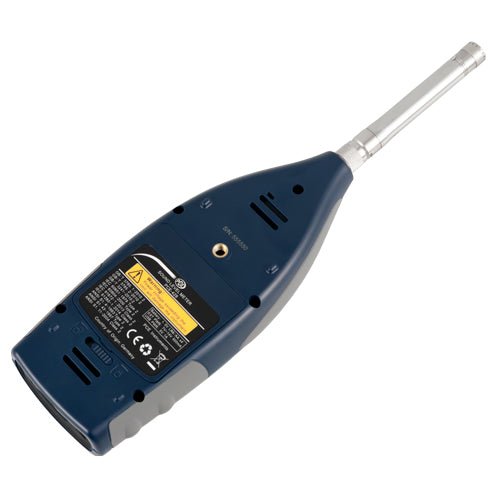

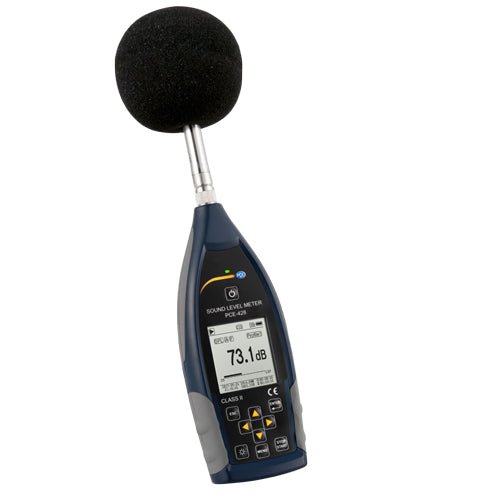

PCE 428 Class 2 Decibel Sound Meter (25 - 136dB)
Highlights:
- Measures from 25 - 136 db(A) at a frequency of 20 Hz - 12.5 kHz
- Portable
- High-accuracy
- 1/1 octave band filter (optional 1/3 octave band filter upgrade)
The PCE 428 Class 2 Decibel Sound Meter (25 - 136dB) meets IEC 60651:1979, IEC 60804:2000, IEC 61672-1:2013, ANSI S1.4-1983 and ANSI S1.43-1997 requirements. This portable, high-accuracy sound level meter has a large easy-to-read light-up LCD screen that displays the sound pressure level (SPL) numerically & graphically in real time. Thanks to octave band filtering, even the slightest difference in frequency is detected.
This handheld sound meter also functions as a data logger, recording measurements at an adjustable interval from 1 s - 24 h and storing the recorded measurement data to a micro SD card. The card can be removed from the meter and inserted into a PC. Alternatively, the decibel meter can be connected directly to a PC via USB. The provided PC-compatible software allows for quick and easy data analysis.
This device measures from 25 - 136 db(A) at a frequency of 20 Hz - 12.5 kHz. The meter features A, B, C and Z frequency weightings as well as fast, slow and impulse time weightings. The PCE-428 decibel meter is commonly used by professionals to ensure compliance with environmental noise regulations and workplace noise permissible exposure limits.
Features:
- Accuracy class 2
- A, B, C and Z frequency weightings
- Fast, slow and impulse time weightings
- 1/1 octave band filter (optional 1/3 octave band filter upgrade)
- Adjustable data-recording interval from 1 s ... 24 h

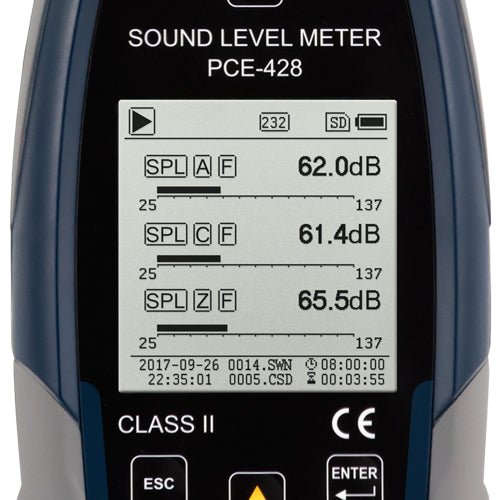

- Real-time numerical and graphical LCD display
- Adjustable alarm
Specifications:
- Measuring range: 25 - 136 db(A)
- Accuracy: Class 2
- Frequency range: 20 Hz - 12.5 kHz
- Standards:
- GB/T 3785.1-2010
- GB/T 3785.2-2010
- IEC 60651:1979
- IEC 60804:2000
- IEC 61672-1:2013
- ANSI S1.4-1983
- ANSI S1.43-1997.
- Frequency analysis:
- 1/1 Octave band filter: 20 Hz - 8 kHz
- 1/3 Octave band filter: 20 Hz - 12.5 kHz

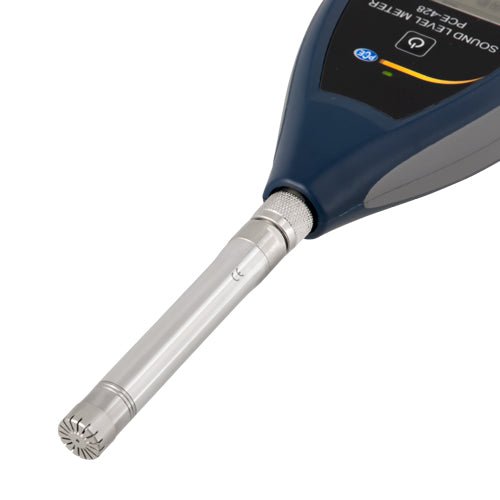

- Microphone:
- 1/2"
- Microphone Class: 2
- Sensitivity: 40 mV/PA
- Frequency range: 20 Hz - 12.5 kHz
- Connection: TNC
- Power supply: ICCP Standard
- Data-logging interval: 1 s ... 24 h (adjustable)

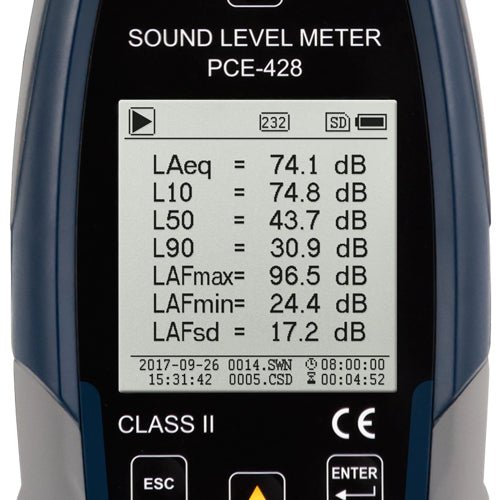

- Measuring functions: LXY (SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN
- X = Frequency weighting: A, B, C, Z
- Y = Time weighting: F, S, I

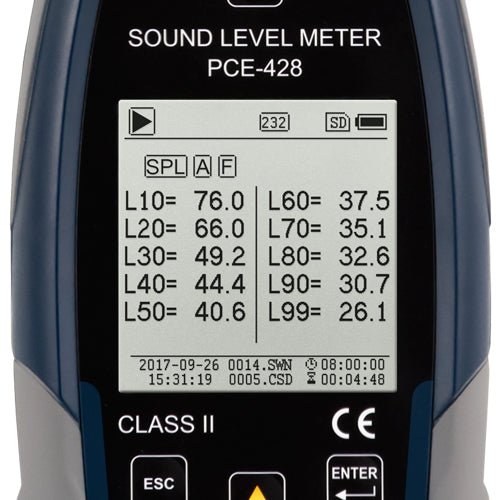

- N = Statistics in %: 1 ... 99%
- Frequency weightings: A, B, C, Z
- Time weightings: Fast (F) 125ms, Slow (S) 1 sec, Impulse (I) 35 ms
- Inherent noise:
- Microphone: 20 db(A), 26 db(C), 31 db(Z)
- Electronics: 14 db(A), 19 db(C), 24 db(Z)
- AD converter: 24 Bit
- AD Sample rate:
- Standard: 48 kHz
- LN Mode: 20 ms
- Measuring display:
- Numerical

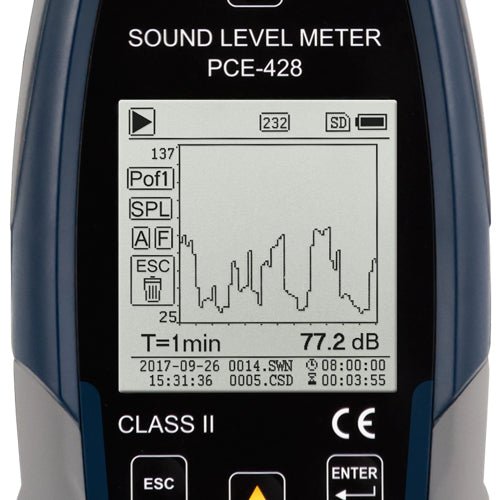

- Bar graph
- Graphical

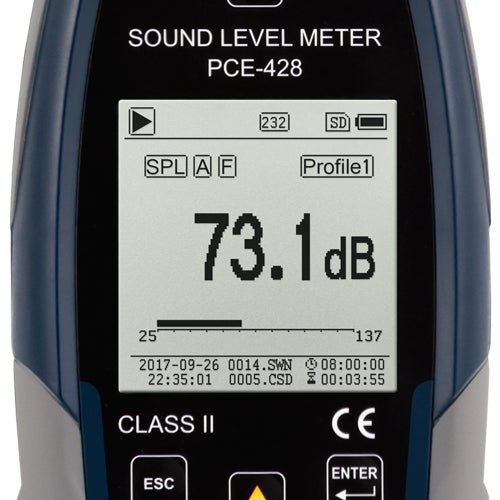

- Display: 160 x 160 pixel LCD with backlight
- Memory: 4 GB Micro SD card

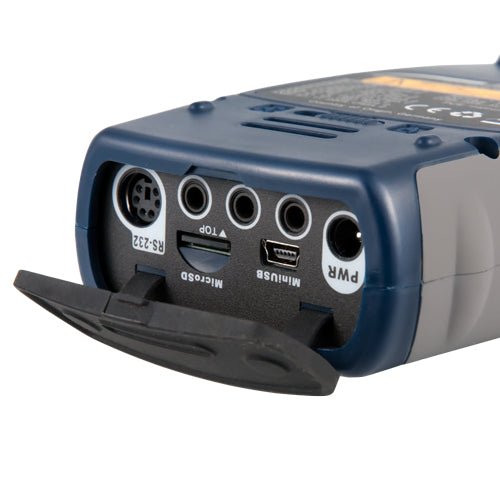

- Interface:
- USB (Memory readable via software or directly as mass storage)
- RS-232
- Voltage output:
- AC 5V RMS
- DC 10 mV/db
- Alarm: Adjustable
- Power supply:
- 4 x 1.5V AA Batteries
- 12V / 1 A Power plug
- 5V / 1 A USB
- Battery life: Min. 10 h continuous use
- Dimensions: 70 x 300 x 36 mm / 2.76 x 11.81 x 1.42 in (W x H x D)
- Weight: Approx. 620 g / 1.4 lbs incl. batteries

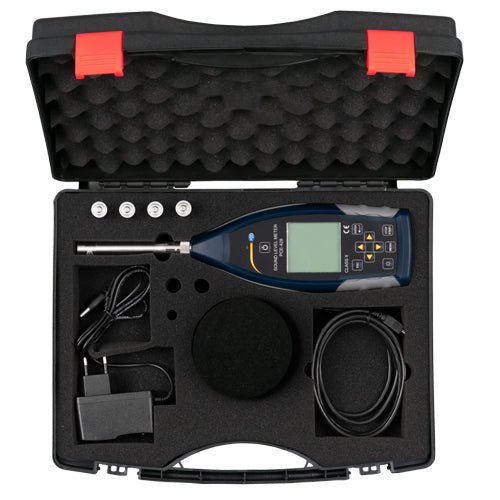

What's included:
- 1 x Environmental Meter PCE-428
- 1 x Microphone
- 1 x Wind noise suppressor (foam ball)
- 1 x USB cable

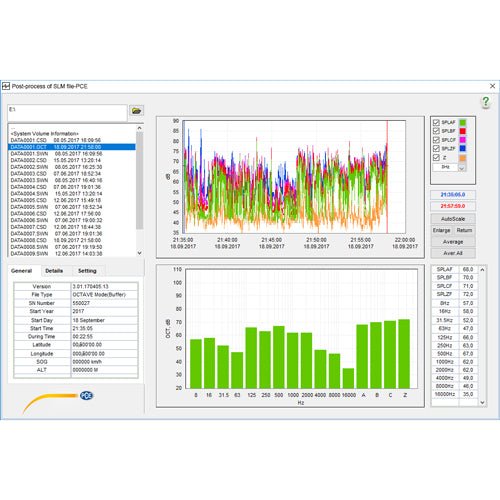

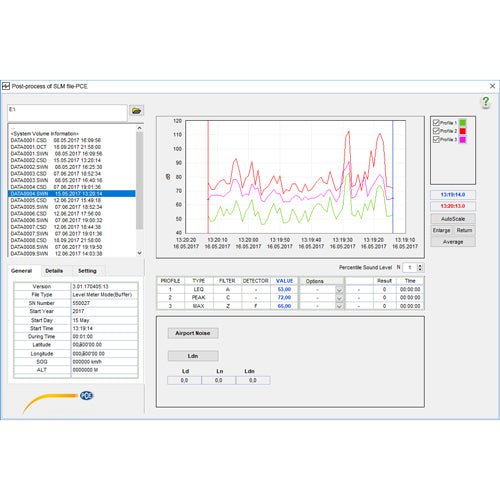

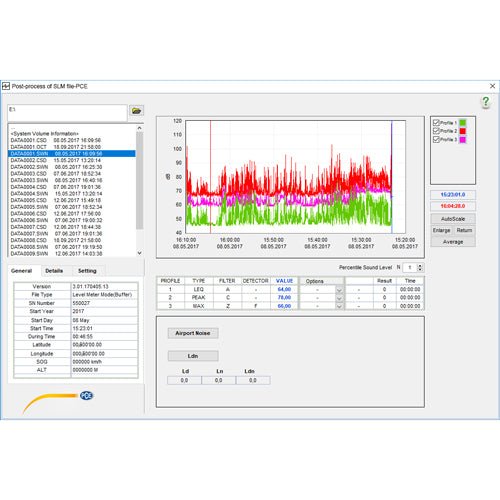

- 1 x PC software is a free download
- 1 x Power supply
- 1 x User manual
- 1 x Carrying case
Note: This meter comes standard with a 1/1 octave band filter. An optional 1/3 octave band filter upgrade is available for an additional fee
Need more info? Please contact us or go to the PCE Resource Center.
