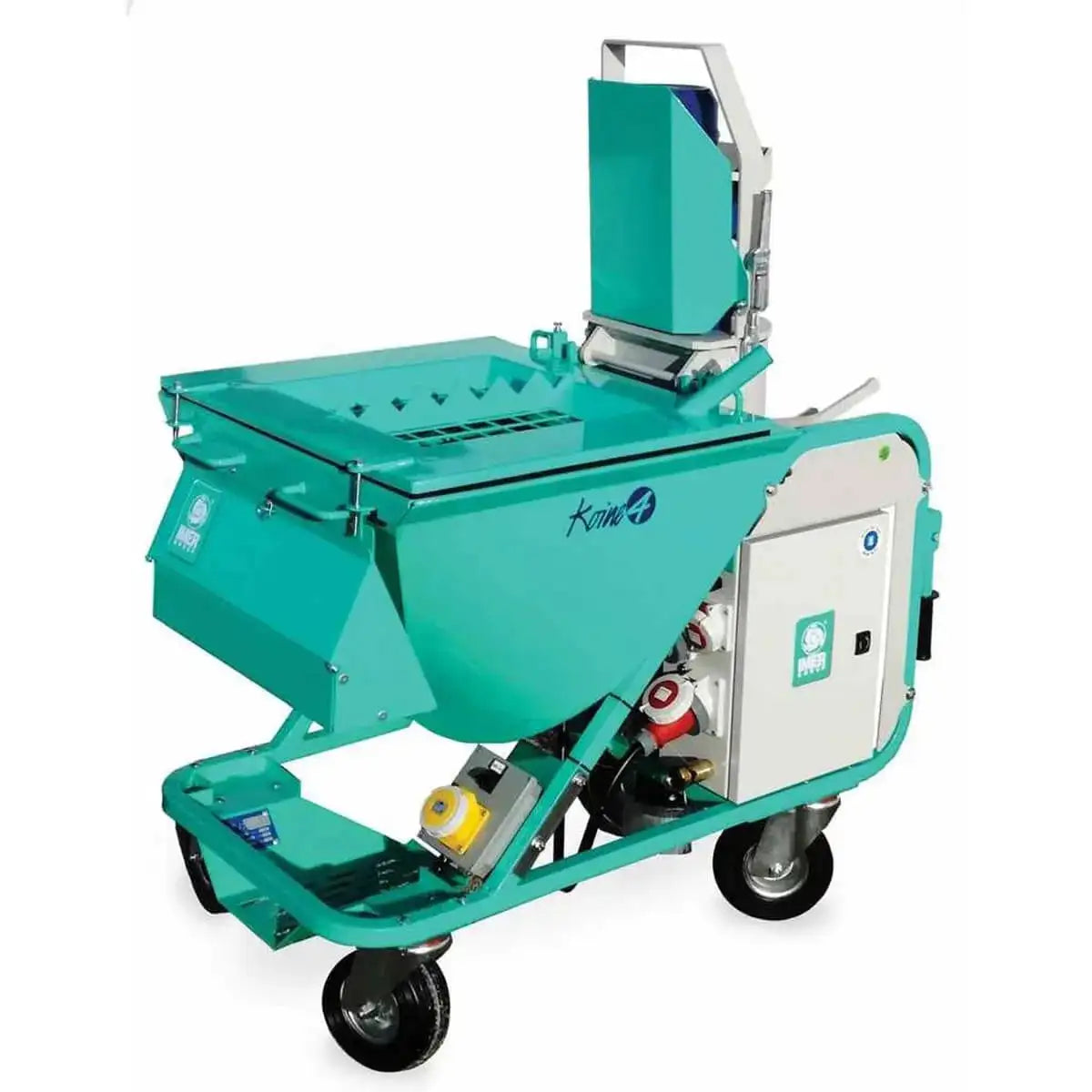

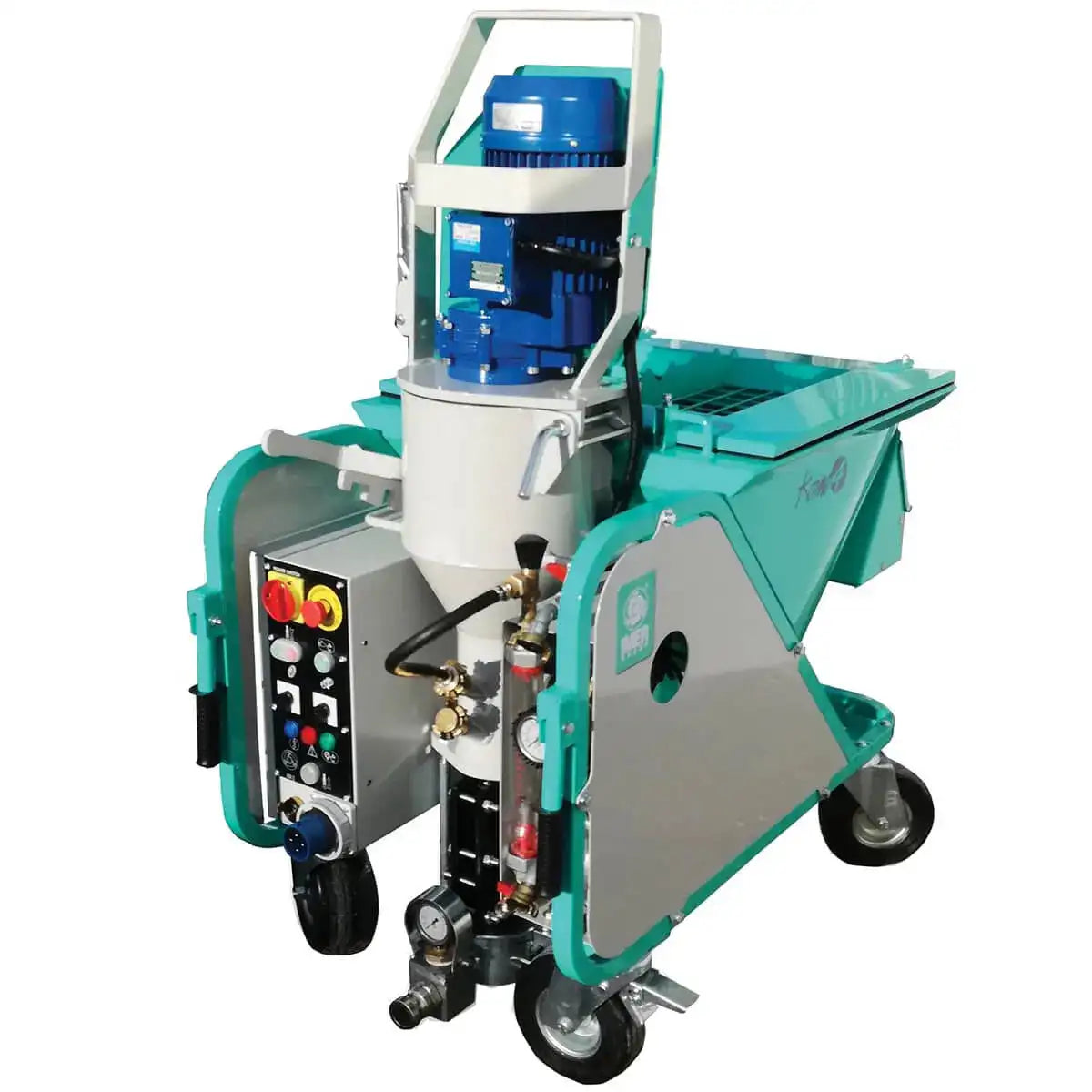

Imer Koine 4 Continuous Mixer & Pump
Ime Koine 4 is a Hi-FLOW continuous mixing, pumping for premixed bagged materials. Designed for mixing and pumping wall grouts and self leveling underlayments when you need tremendous production. The Koine 4 does the work of 2-3 mixers as well as runners walking with buckets hundreds of feet away back and forth. Once the water is adjusted to the desired consistency, continuously feed the bags for a uniform batch from start to finish.
Features
- Pump self leveling underlayments or fill blocks with grouts
- Hopper and feeding wheel can handle up to 9 50 lb. bags of dry material at one time, delivering dry material at a constant rate to the mixing chamber to be mixed and then pumped out
- Gear driven continuous feed impeller wheel provides dry material to mixing chamber
- Dust control grate with vacuum port helps eliminate dust
- Upgraded self priming water pump can pull water from external tank, no water hook up required
- Heavy duty motor drives the gearbox, main shaft, mixing paddle, rotor, and standard turbo mixer
- Included is a 1 hp water booster pump to boost the water pressure and flow and also siphon water from a tank if needed
- Boosting the water provides a surplus in which a regulator injects the water into the mixing chamber at a controlled rate
- Booster pump is also used to flush out the hoses so that your quick setting materials do not set up
- Wired remote control works from over 100' away allowing you to see how much flow is filling up your void or floor
- If you need to stop for a break or end of day you can leave the dry, unmixed material in the hopper just switch off the feeding wheel and use out what is in the mixing chamber
- Optional dual diaphragm compressor can be added to spray mortars, stucco, plasters, etc.
- 2500 liter per hour water system allows for precisely metered flow for different materials based on requirements
- Easy clean up mixing chamber with different material paddles available
- Switchable 3 phase connection via phase converter switch for forward and reverse
- Only 27 inches wide to fit thru any doorway
- Motor with 410 RPM gear reduction drive system to the paddle
- Powerful 100% duty cycle high torque motor
- Low 36" hopper loading height
What's Included?
- Imer Koine 4 Continuous Mixer & Pump
- R8 Rotor / Stator with drive tab for Turbo Mixer

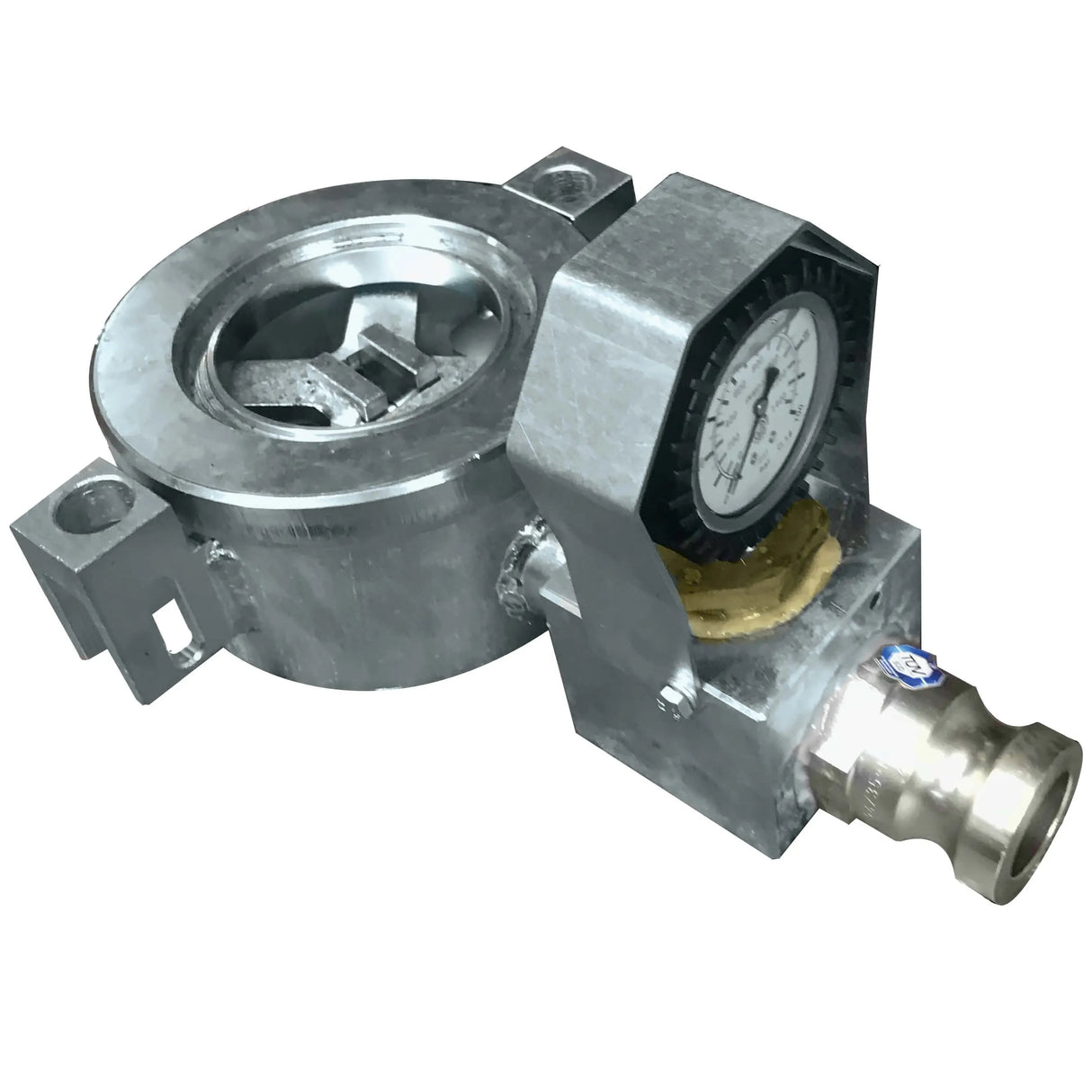

- Turbo mixer with pressure gauge
- Hi Flow mixing chamber with standard mixing paddle

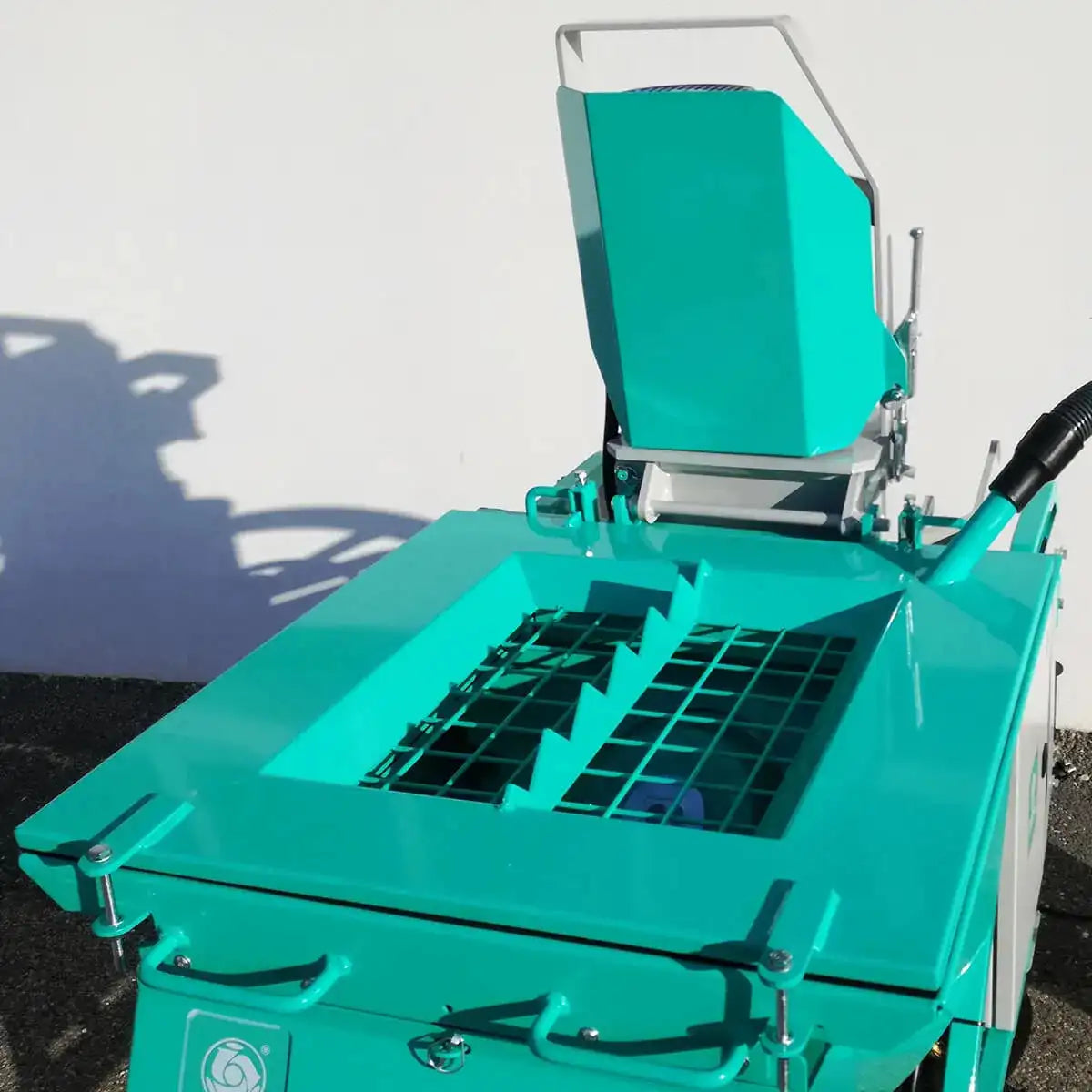

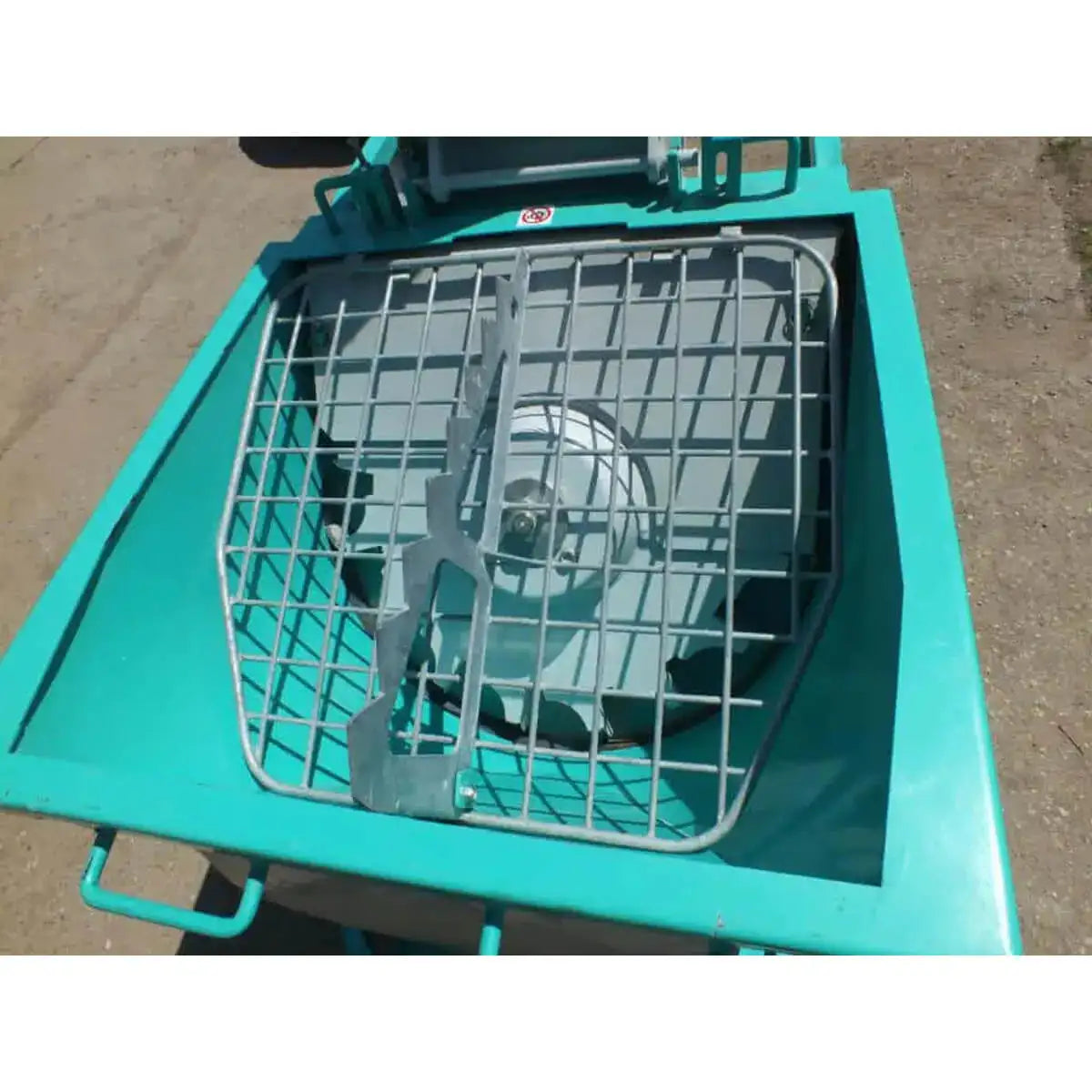

- Dust control grate over hopper and feeding wheel
- Water booster pump with advanced adjustable water flow system
- 130' of electrical cord
- 130' of 3/4" water hose
- 33' of 35mm / 1-3/8" material hose
- Hose cleaning kit with tool box
- Mixing chamber clean out tool
- Operator's manual
| IMER Koine 4 Hi-FLOW Continuous Mixer Specifications | |
| Power Supply | 220V, 3 phase |
| Total Machine Power | 9 hp |
| Mixin and Pumping Motor Power |
7.5 hp |
| Feeling Impeller Wheel Motor Power |
1 hp |
| Material Flow Rate | 169 CFH |
| 50 lb Bag per Minute | 5-7 |
| Max Pumping Distance with 1-3/8" Hose | 300+ ft. |
| Hopper Capacity (50 lb. bags) |
9 |
| Loading Height | 36" |
| Dimensions | 29" x 47" x 61.5" |
| Weight | 475 lb. |
