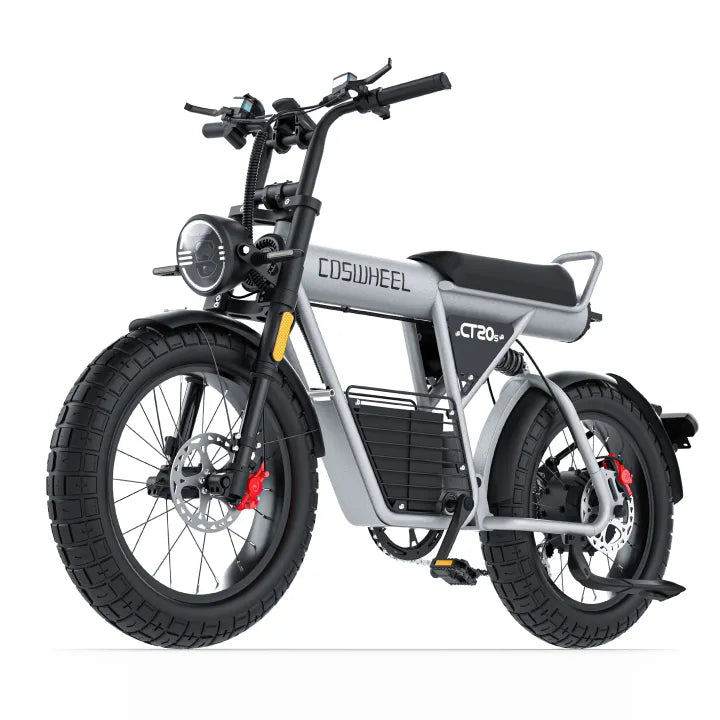

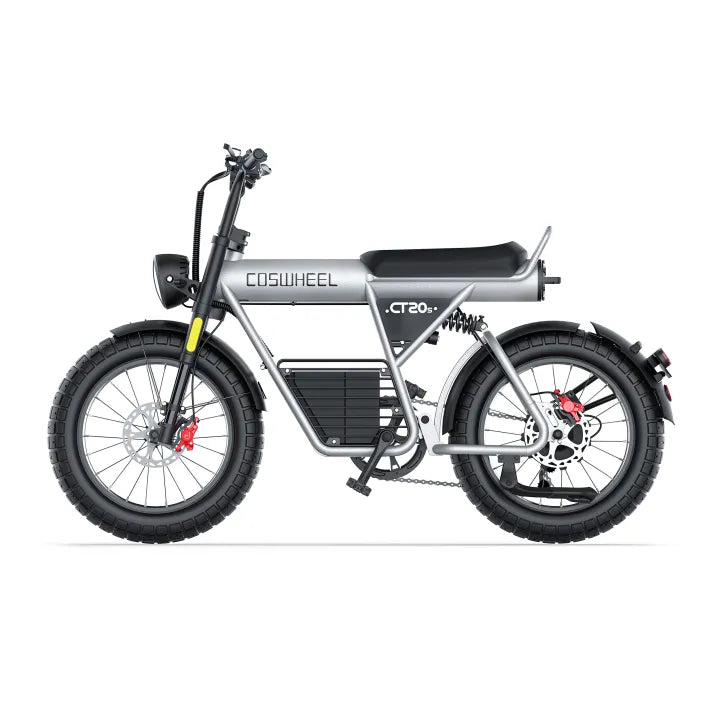

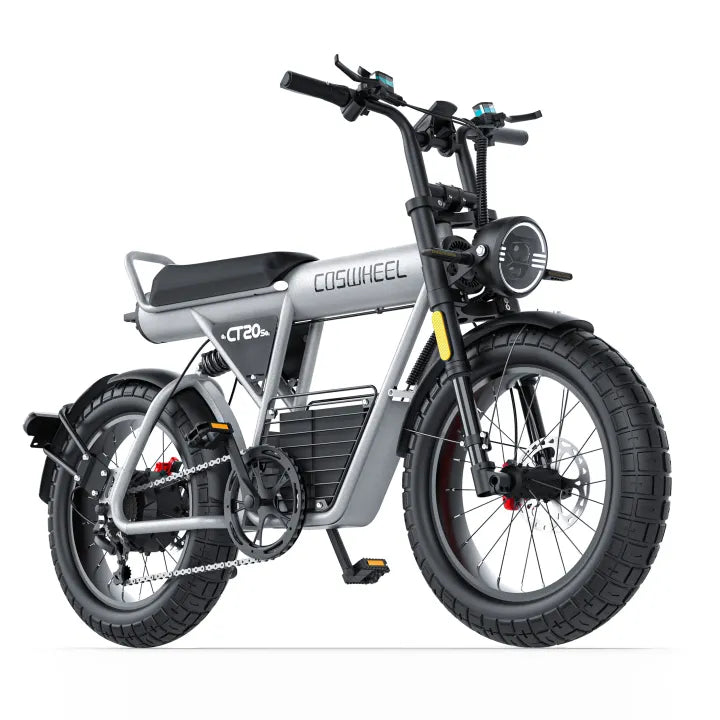

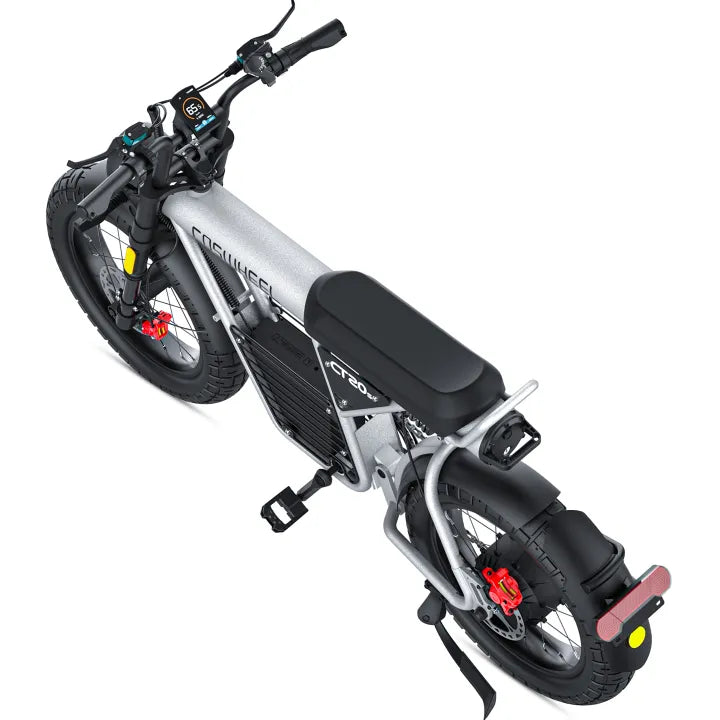

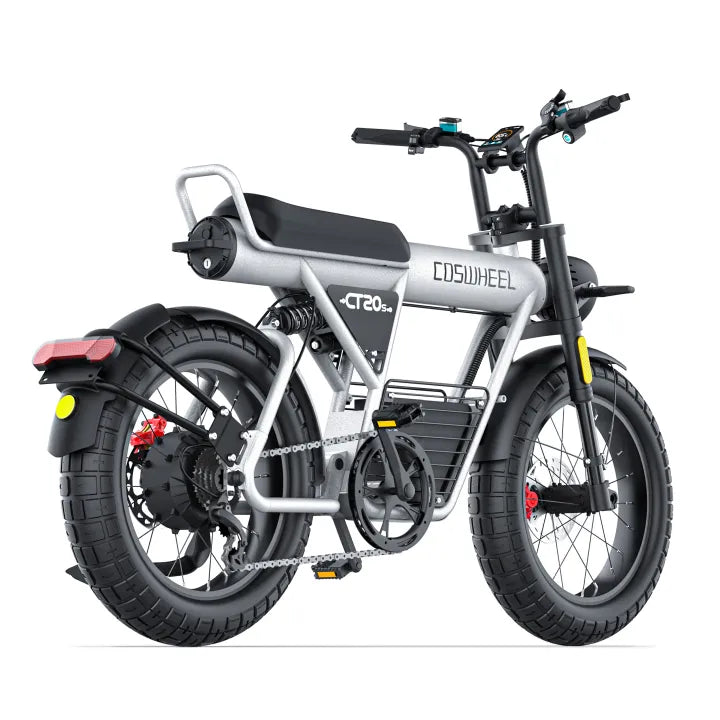

COSWHEEL CT20S Electric Bike (1500W)

COSWHEEL CT20S Electric Bike (1500W)

In 2023, COSWHEEL will release the upgraded CT20S ebike, enhancing its power and suspension capabilities. The CT20S now boasts a peak motor power of 2000W (rated at 1500W), with increased torque of 120Nm, delivering faster acceleration and improved climbing performance. It also features a new adjustable damping rear suspension system to enhance stability and ride comfort.

Key Features:

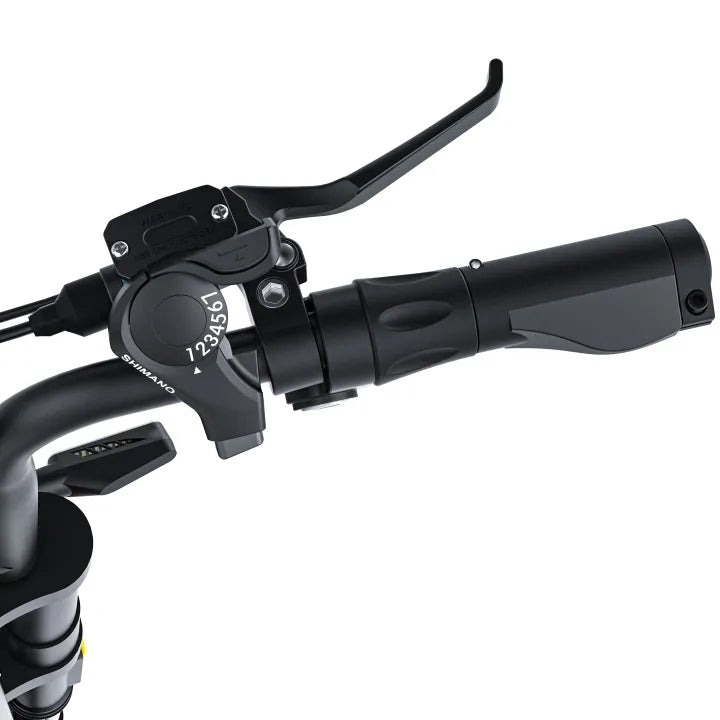

7-Speed Gearing
The CT20S is equipped with a Shimano 7-speed cassette, enabling smooth gear transitions and making steep climbs easier.

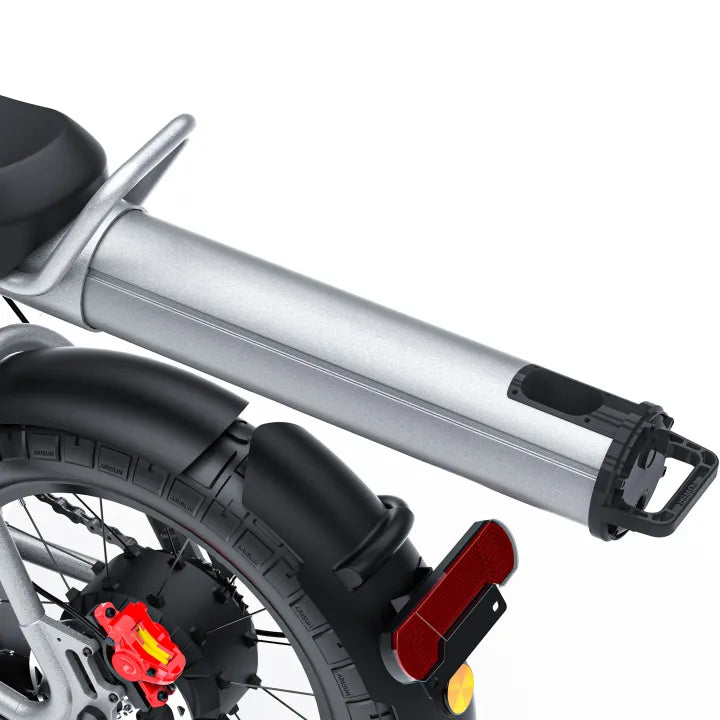

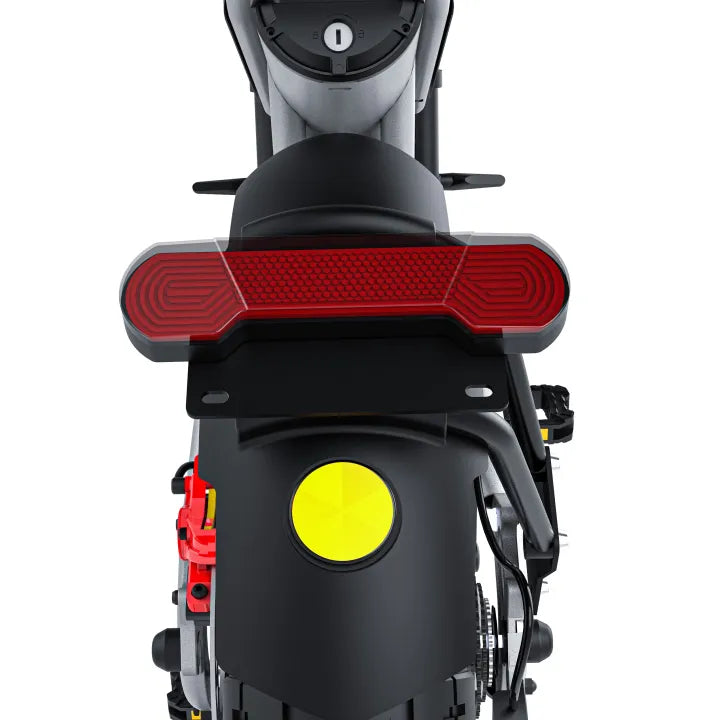

Deluxe Fenders
The bike comes with double-protection fenders that are sturdy and durable. The integrated rear taillight LED on the fenders adds a touch of elegance to the design.

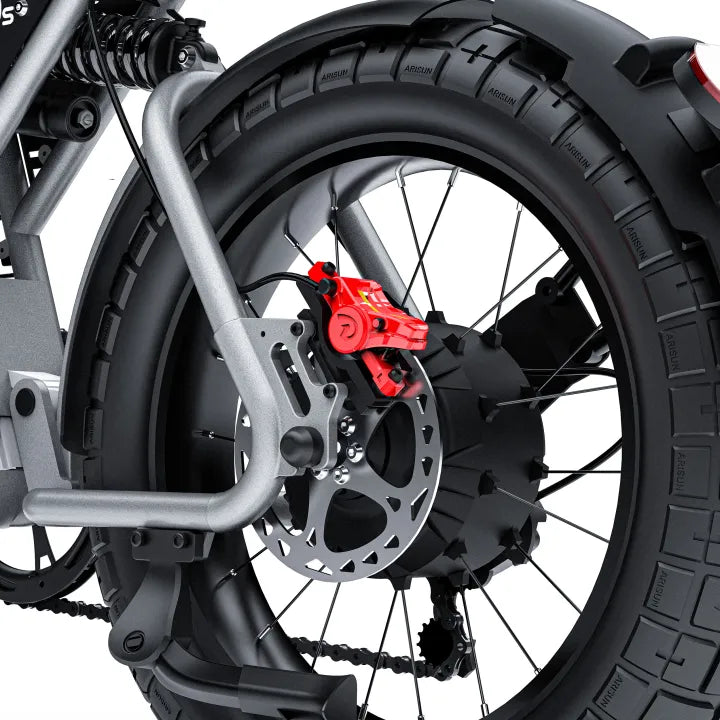

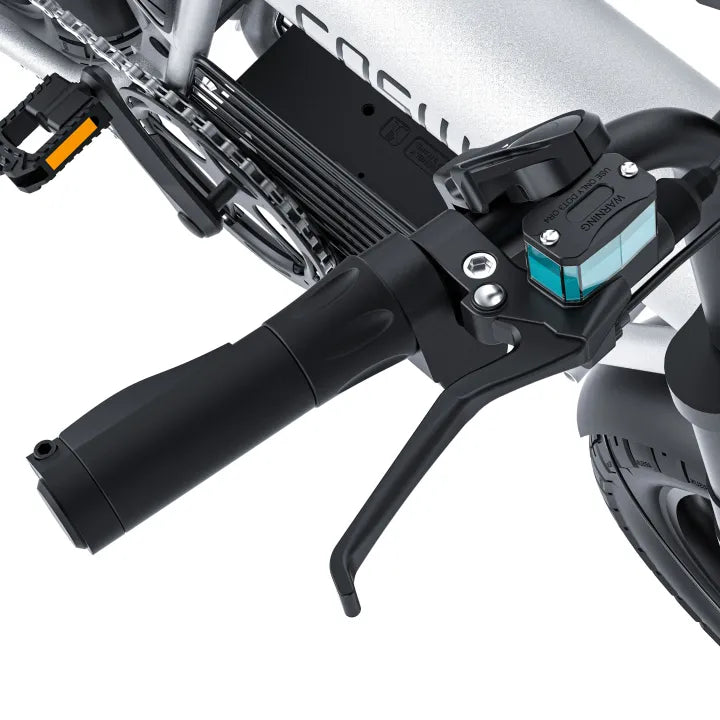

Oil Brakes
Both front and rear are fitted with motorcycle-grade dual-piston hydraulic oil brakes and 180mm high-quality brake discs, providing a safer and more controlled ride.

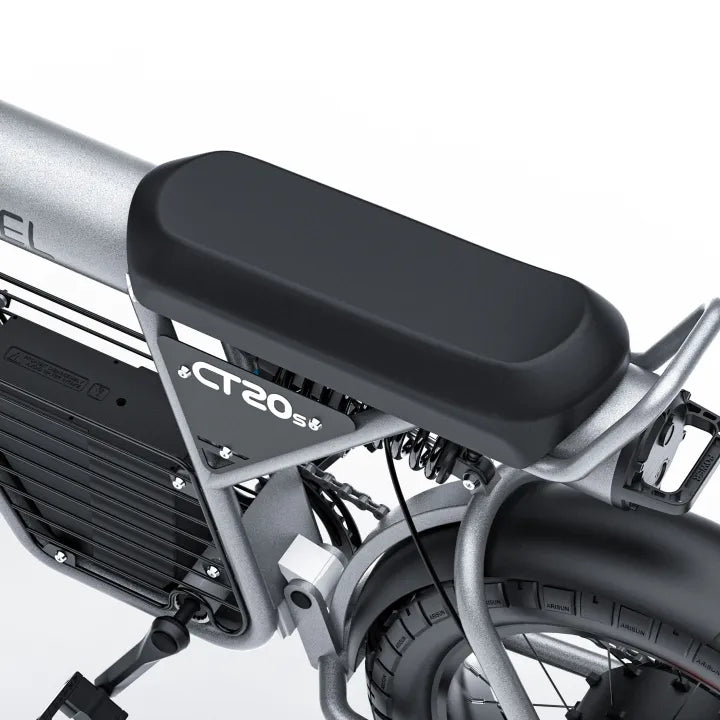

Comfortable Seat
The CT20S features a thick leather seat, ensuring comfort during long rides.

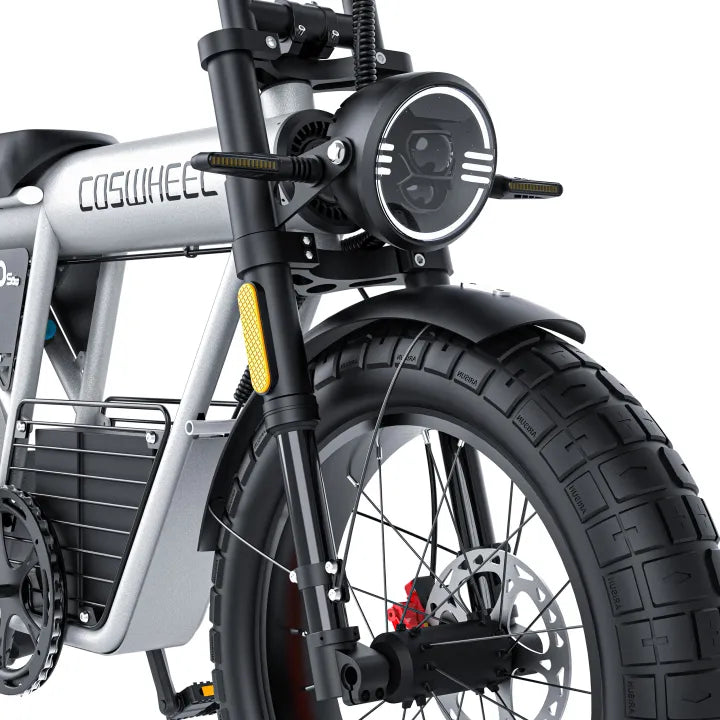

Front and Rear Suspension
With 180mm of travel in both the front and rear suspension, the CT20S offers excellent shock absorption and resilience, making it perfect for all types of terrain.

Enhanced Performance:

Powerful Motor
The CT20S is powered by a high-speed brushless motor that peaks at 2000W (rated 1500W), with 120Nm of torque. This powerful motor makes it easy to travel between cities and tackle rugged country roads.

Longer Range for Family Adventures
The CT20S offers three lithium battery options (1200Wh, 1680Wh, and 1650Wh), providing a range of up to 75 miles (120 km). The bike’s maximum speed is 28 MPH (45 km/h), which can be unlocked to reach higher speeds in off-road mode. Please contact our customer service for further details.

Smart App Connectivity
The CT20S is compatible with a smartphone app, allowing you to track your ebike’s location and monitor various ride parameters in real time.

Specifications:

Performance:

• Top Speed: 28 MPH (45 km/h) in Class 2/3 mode, with the option to unlock higher speeds in off-road mode
• Range: 40-45+ miles in Class-2 throttle-only mode; 75+ miles in Class-1 Pedal Assist mode
• Motor: 48V Peak 2000W (Rated 1500W) Brushless Rear Hub Motor with 120Nm torque
• Battery: 48V 25/35Ah and 60V 27.5Ah Lithium 18650 Cells
• Energy: 1200Wh, 1680Wh, or 1650Wh
• Front Suspension: 20" shoulder shock-absorbing, 80mm travel
• Rear Suspension: Adjustable damping suspension, 180mm travel
• Brakes: Dual-piston hydraulic oil brakes, 180mm stainless steel brake discs
• Tires: 20" x 5.0" off-road tires with AV+ lining
• Throttle: Grip twist throttle

Electronics:

• Charger: 48V 3A
• Charging Time: 3.5 to 8 hours

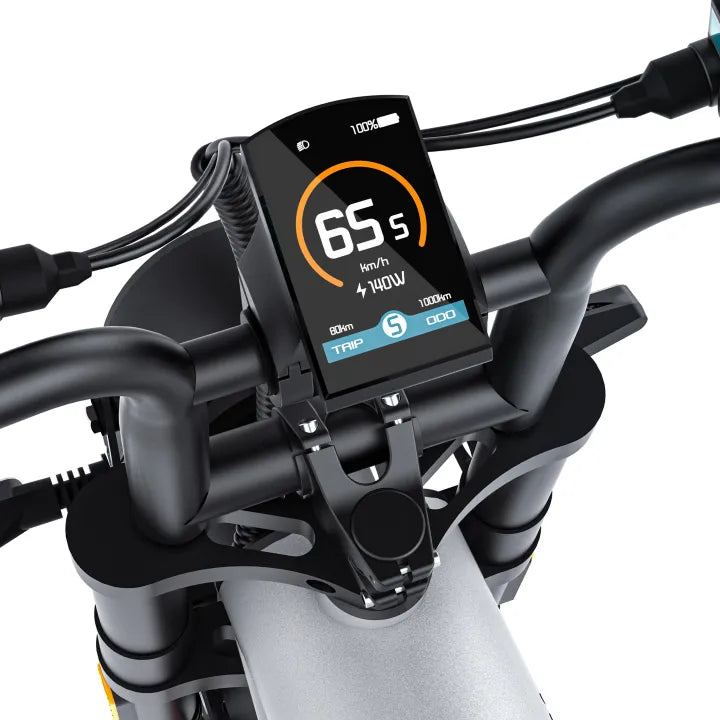

• Display: Easy-read LCD display
• Controller: 48V 28A

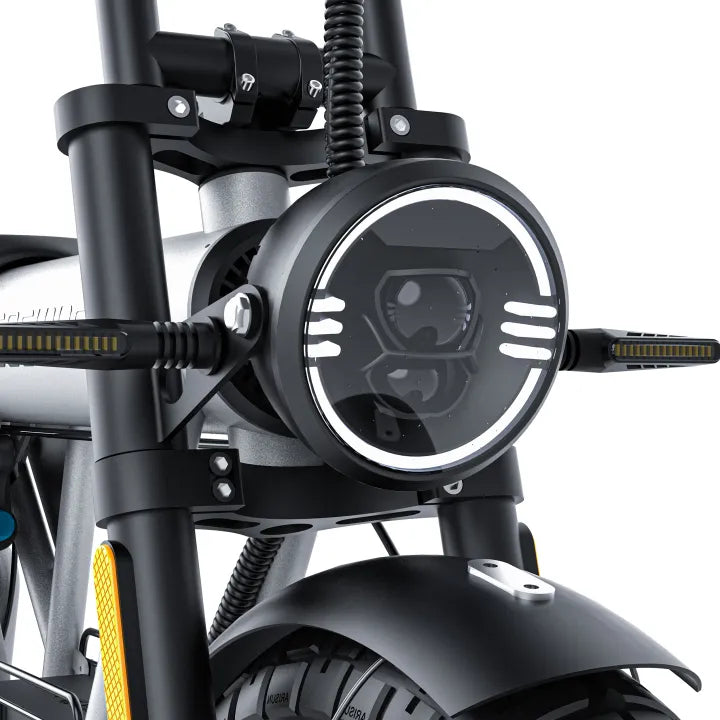

• Front Light: Classic angel-eye headlight, 120 LUX
• Rear Light: LED
• Pedal Assist: 5 levels
• Sensors: Speed sensor

Components:

• Frame: Hydroformed triple-butted 6061-T6 aluminum alloy
• Pedals: Aluminum alloy pedals with reflectors, 9/16 x2 axis
• Crank: 1/2" * 3/32" * 46T 7-speed ED tooth plate
• Rear Derailleur: Shimano 7-speed
• Chain: Anti-rust 7-speed chain, 1/2" * 3/32"
• Handlebars: Sand black, 31.8mm * 660mm

Package Contents:

• 1x CT20S Ebike
• 2x Fender
• 1x Charger
• 1x Manual
• 1x Tool Bag

Dimensions:

• Suitable Rider Height: 5'1" - 6'5"
• Seat Height: 32.6" (83cm)
• Bike Height: 41.7" (106cm)
• Wheelbase: 47.8" (121.5cm)
• Handlebar Width: 27.2" (69cm)
• Bike Weight (with battery): ≥99 lbs (≥45 kg)
• Maximum Load: 330 lbs (150 kg)
• Safe Load: 265 lbs (120 kg)
• Overall Size: 70.9" * 27.2" * 41.7" (180 * 69 * 106 cm)
• Package Size: 59.4" * 13.8" * 36.2" (151 * 35 * 92 cm
