PCE BTM 2000A Belt Tension Force Meter

SKU: PCE-BTM 2000A
$768.00

✔#1 Authorized Online Dealer

✔ Free Shipping No Sales Tax (Some Exclusions May Apply)

We Beat The Lowest Prices

✔Fast 4-7 Day Delivery

✔ Questions? Call Our Experts (844) 513-6374

Checkout Secure

PCE BTM 2000A Belt Tension Force Meter

Highlights:

  • This product replaces the PCE-BTM 2000.
  • IMPORTANT: This item may have longer-than-normal lead time. Please contact us to get the current lead time.
  • Memory for 750 measured values
  • Graphic display
  • Easy operation
  • Multilingual menu
  • Measurement in Hz and N

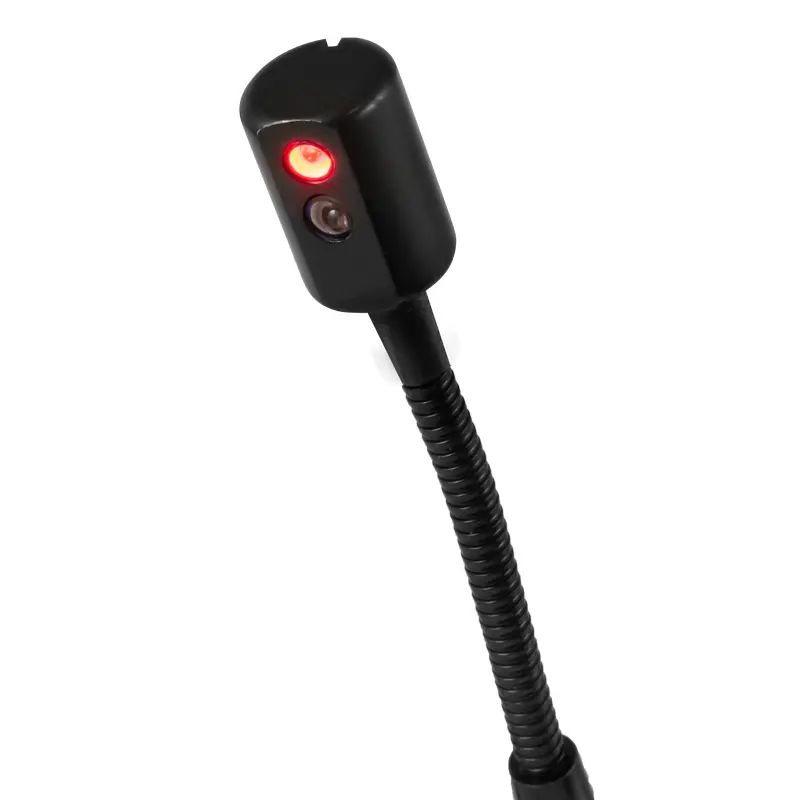

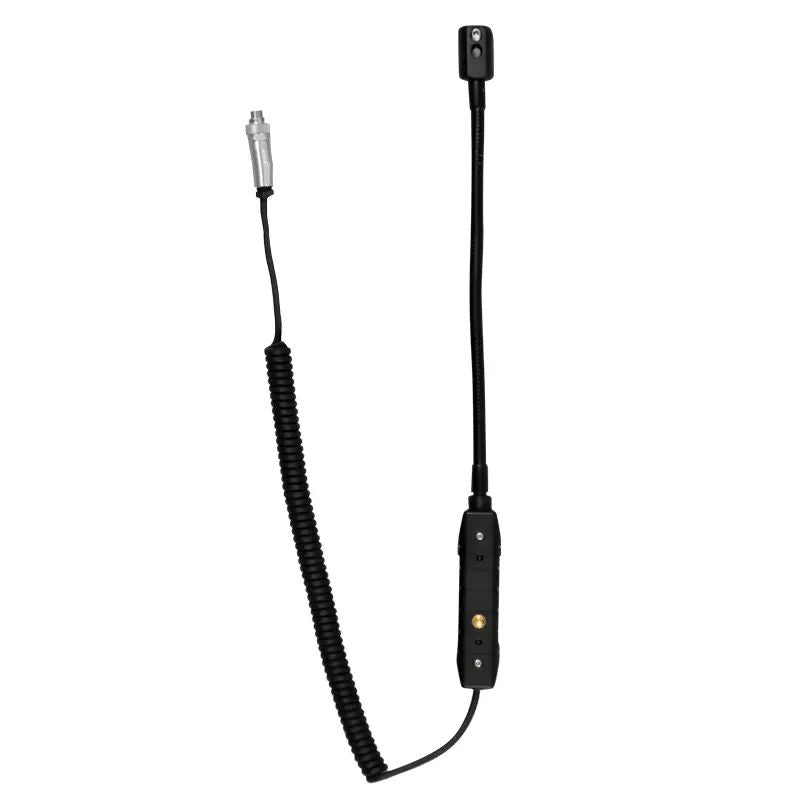

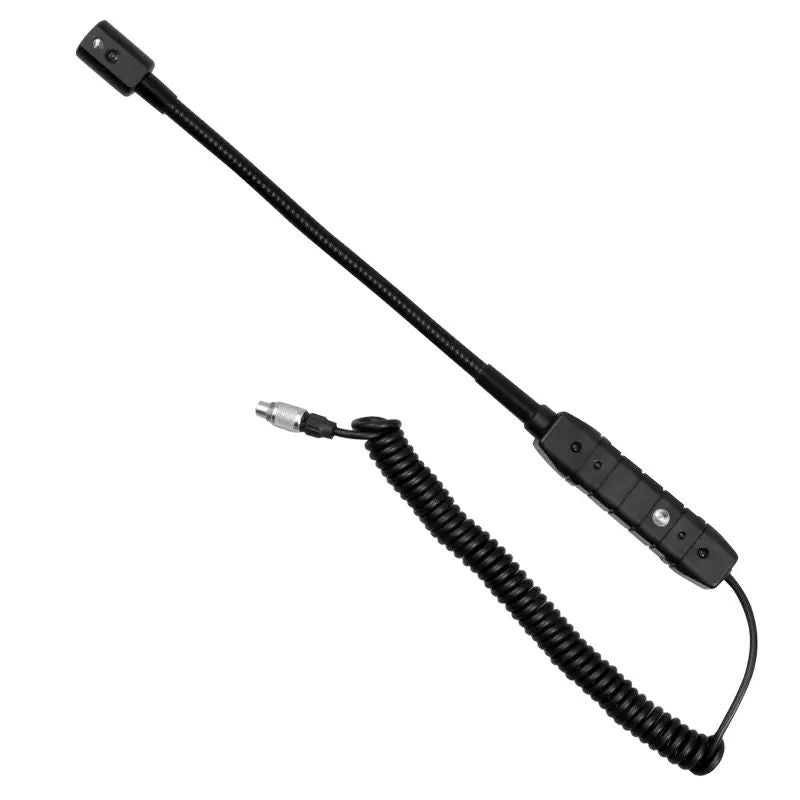

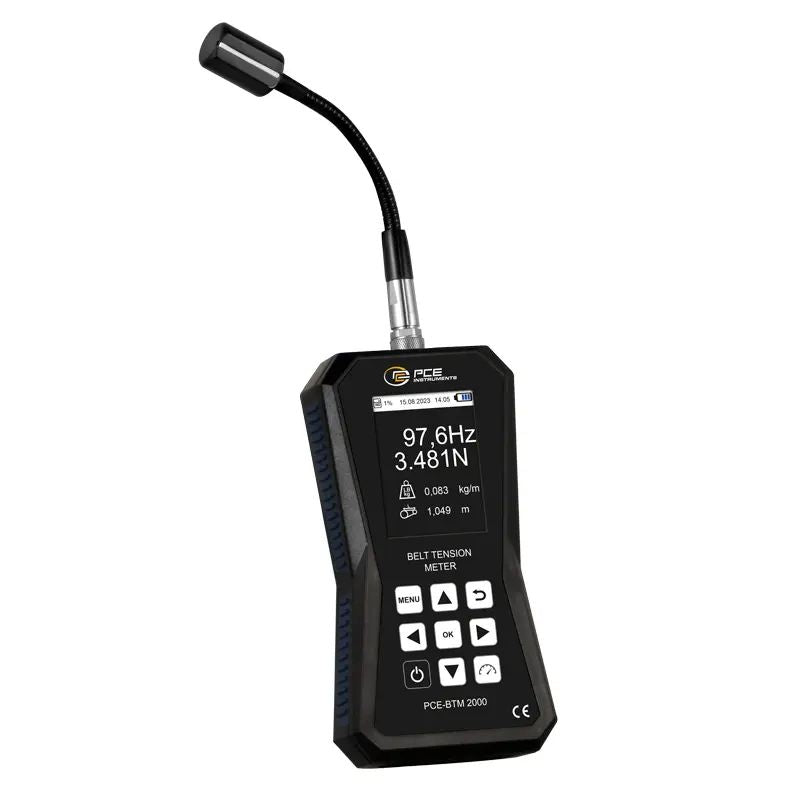

The PCE BTM 2000A Belt Tension Force Meter is a visual maintenance tool used to measure belt tension force. It includes a display device and a sensor head mounted on a semi-flexible gooseneck, which allows the sensor head to be positioned with flexibility. The gooseneck's mobility enables the sensor to measure the strand force even in difficult-to-reach areas. This belt tension measuring device determines both the belt tension (in Newton) and the belt frequency (in Hz) when the belt is stationary.

A small impulse on the belt is sufficient to set the belt vibrating. The devise measures with the sensor the natural frequency of the belt generated in this way and visualizes it on the display. The meter can directly determine the actual tension (in Newton / Pound Force) of the belt from the belt frequency combined with the optionally entered belt length and belt mass. However, entering this data is not necessarily required in order to carry out the measurements directly with the belt tension measuring device. The measurement units in the device can be switched between N (SI unit) and pound force (US unit).

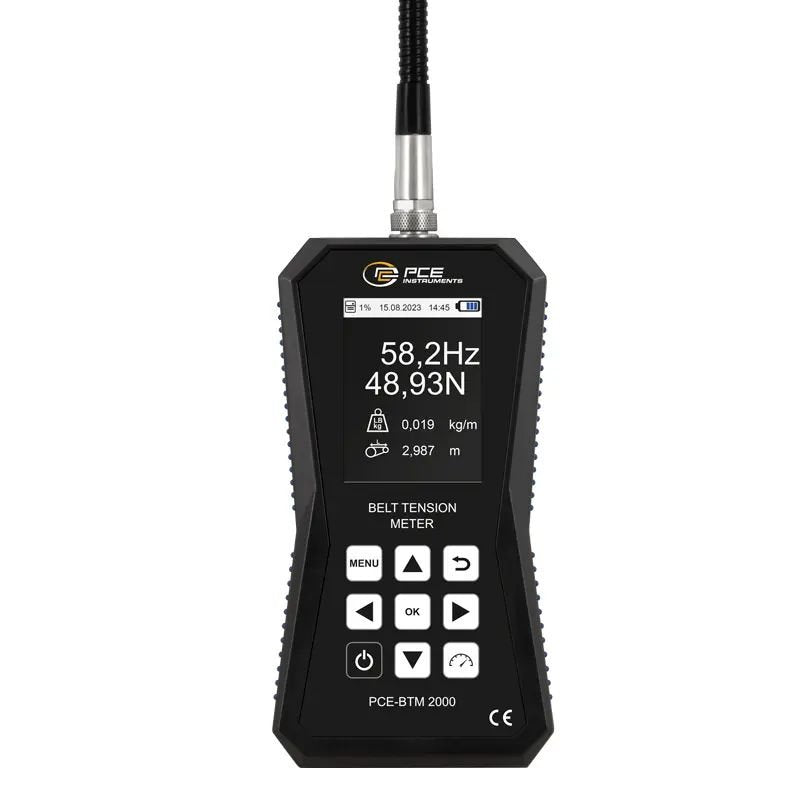

The reading is always shown as the belt frequency in Hz on the display of the belt tension measuring device. The intuitive graphic menu is visualized on the high-contrast display of the belt tension measuring device in six different languages. Up to 750 data records can be stored in the memory of the belt tension measuring device. The belt tension measuring device is delivered completely ready for use. The scope of delivery includes the handheld device, the standard sensor with gooseneck, a magnetic holder, batteries and operating manual. To increase the flexibility during the measurement, the following items are optionally available to the belt tension meter: an external sensor head with a spiral cable, a device hard case, a frequency mallet and a tripod.



Features:

  • Measurement of the oscillation frequency of the drive belt
  • Intuitive controls
  • Calculation of the tension force
  • Display of the belt tension in N
  • 6 menu languages
  • Memory for 750 measured values
  • Sensor on gooseneck
  • Input of belt length and belt mass

Specifications:

  • Measuring range: 10 - 900 Hz
  • Accuracy ± (1% of rdg. + 4 digits)
  • Repeatability accuracy: ± 1 Hz
  • Resolution
    • <100 Hz: 0.1 Hz
    • >100 Hz: 1 Hz
  • Belt length: max. 9,999 m
  • Belt mass: max. 9,999 kg/m
  • Memory:
    • 750 measured values
    • 15 sets of 50 measuring points
  • Menu languages: German, English, Spanish, French, Italian, Dutch
  • Power supply: 3 x 1.5 V AAA batteries
  • Operating conditions: 0 - 50 °C / 32 - 122 °F; max. 95 % R.H.
  • Storage conditions: -20 - 65 °C / -4 - 149 °C; max. 95 % R.H.
  • Dimensions: 150 x 80 x 38 mm / 5.9 x 3.1 x 1.4"
  • Weight: ca. 200 g / 7 oz incl. batteries

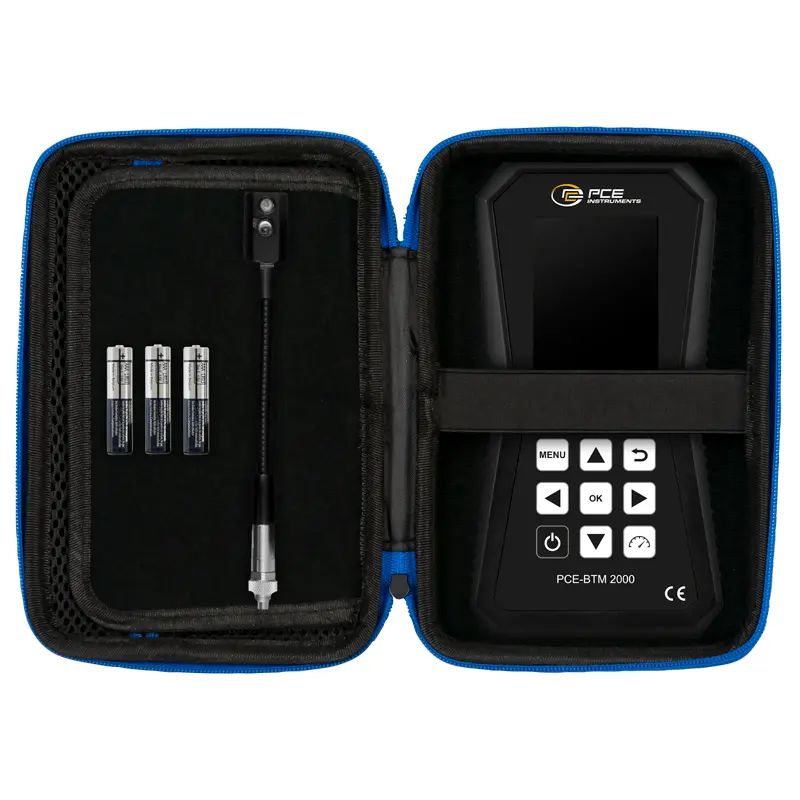

What's Included:

  • ??1 x Belt Tension Meter PCE-BTM 2000A

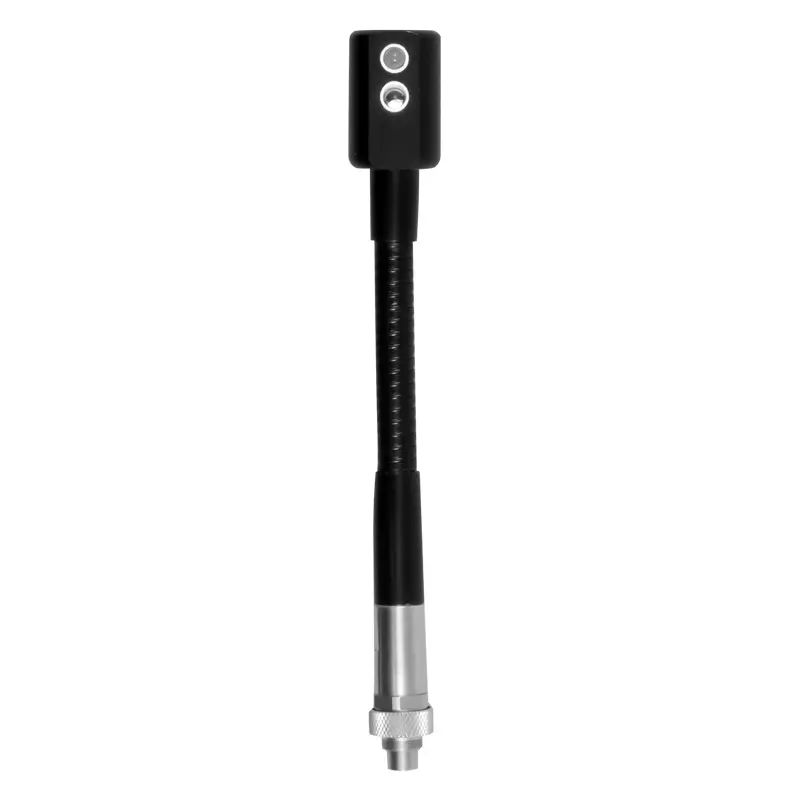

  • 1 x Standard sensor head
  • 1 x Magnetic holder
  • 3 x 1.5 V AAA battery
  • 1 x Operating instructions
  • 1 x Carrying bag

 PCE-BTM 2000A User Manual

 PCE-BTM 2000A Data Sheet
