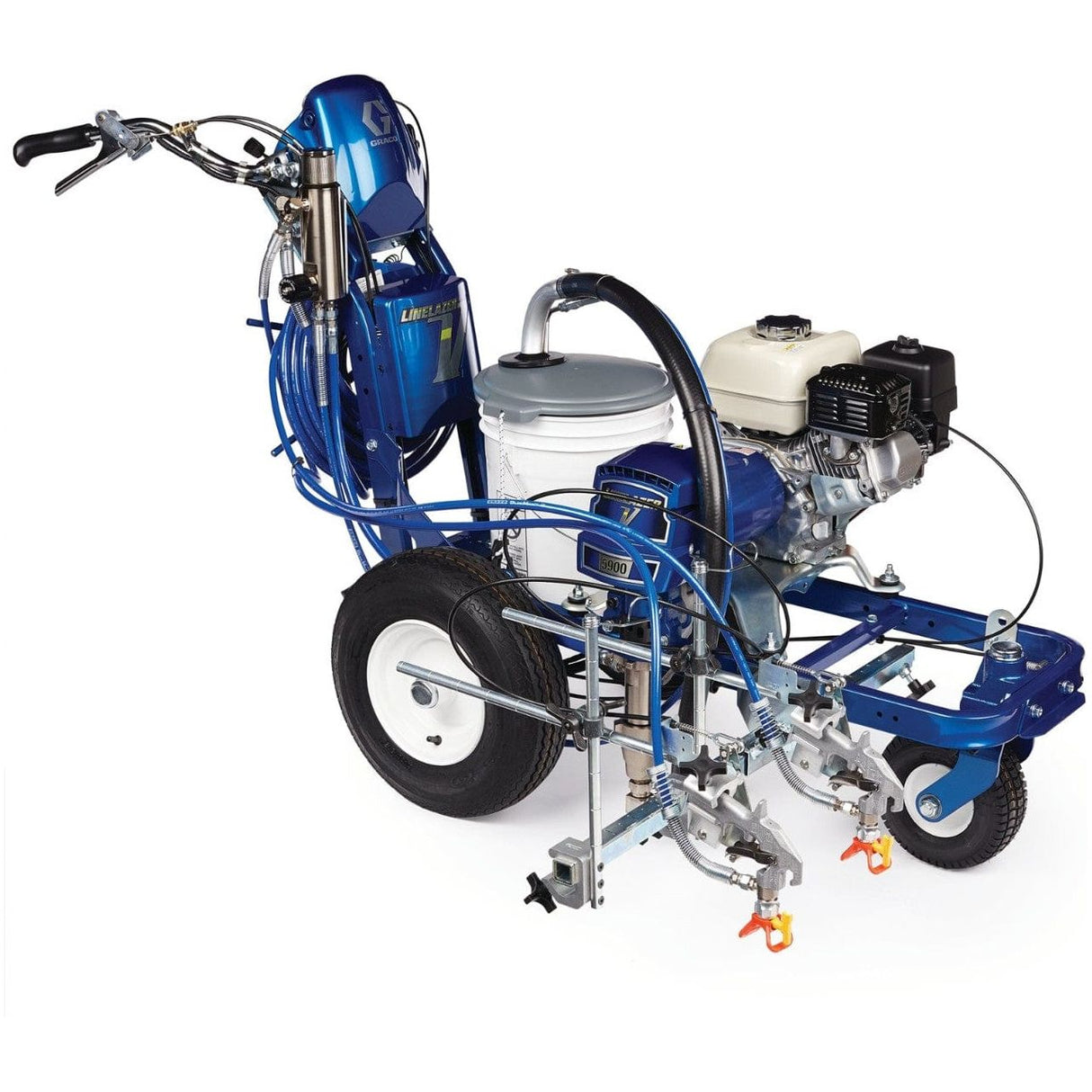

When you need reliable 1 or 2-gun airless line striping with added power, the LineLazer V 5900 Standard Series striper is the perfect option. Built for durability, these machines provide consistent, high-quality lines for all your essential striping tasks.

The LineLazer V Standard Series is ideal for the higher production re-striping contractor completing and considering larger re-striping jobs with basic pattern applications requiring a single-color, single, or dual gun striping solution.

  • LiveLook Display with SmartControl

    • Striping Information At-A-Glance

    • Track, measure, and control every aspect of your job

    • Accessible proof-of-job data from the J-Log System with USB Download

    • Consistent spraying pressure for perfect lines

  • Honda GX Engine

    • Reliable, Easy-to-Start Power

    • Contractor-preferred — excellent power and proven reliability

    • Oil Alert shuts down engine to prevent damage if oil level drops too low

  • EasyMark Gun Adjustment System

    • Easy Gun Adjustments

    • Perfect gun alignment every time with easy-to-use guide mark system

    • 2-gun capability with QuikSelect gun selector

  • EZ Align Wheel System

    • Perfect Striper Tracking

    • Simple front wheel alignment, no special tools needed

  • DualComfort Handlebar System

    • Easy Handlebar Adjustment

  • QuikSelect Gun Selector

    • Simple Gun Control

    • Independently control of two guns with one lever — solid/skip

  • Endurance Chromex Pump

    • Reliable, Long-Life Pump

    • Industry-best pump performance — field-proven design

    • Handle the most demanding materials with long-life rod treatment

    • 4X harder than ordinary chrome

  • Easy Out Pump Filter

    • Easy Pump Maintenance & Less Clogging

    • Inside-out design means less mess with fewer tip clogs

Technical Specifications

Attachments

None

Compatible Material

Road-Marking Paint

Compatible Surfaces

Pavement, Turf

Engine Brand

Honda

Engine Model

GX160

Fuel Tank Capacity (gal)

0.95

Gun Activation

2 Manual

Includes

Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz

Maximum Flow Rate (GPM)

1.6

Maximum Sound Pressure Level (dB(A))

87.1

Maximum Tip Size (in)

0.029

Maximum Working Pressure (psi)

3300

Model

LineLazer V

Number of Colors

One Color

Number of Guns

2

Number of Pumps

1

Overall Height (in)

44.5

Overall Length (in)

68.25

Overall Width (in)

34.25

Power Rating (HP)

5

Power Rating (kW)

3.73

Power Source

Gas

Product Series

Standard

Pump Type

Endurance

Recommended Annual Usage

Up to 1,000 gallons per week

Series

5900

Type

Walk-Behind Line Striper

Weight (lb)

250
