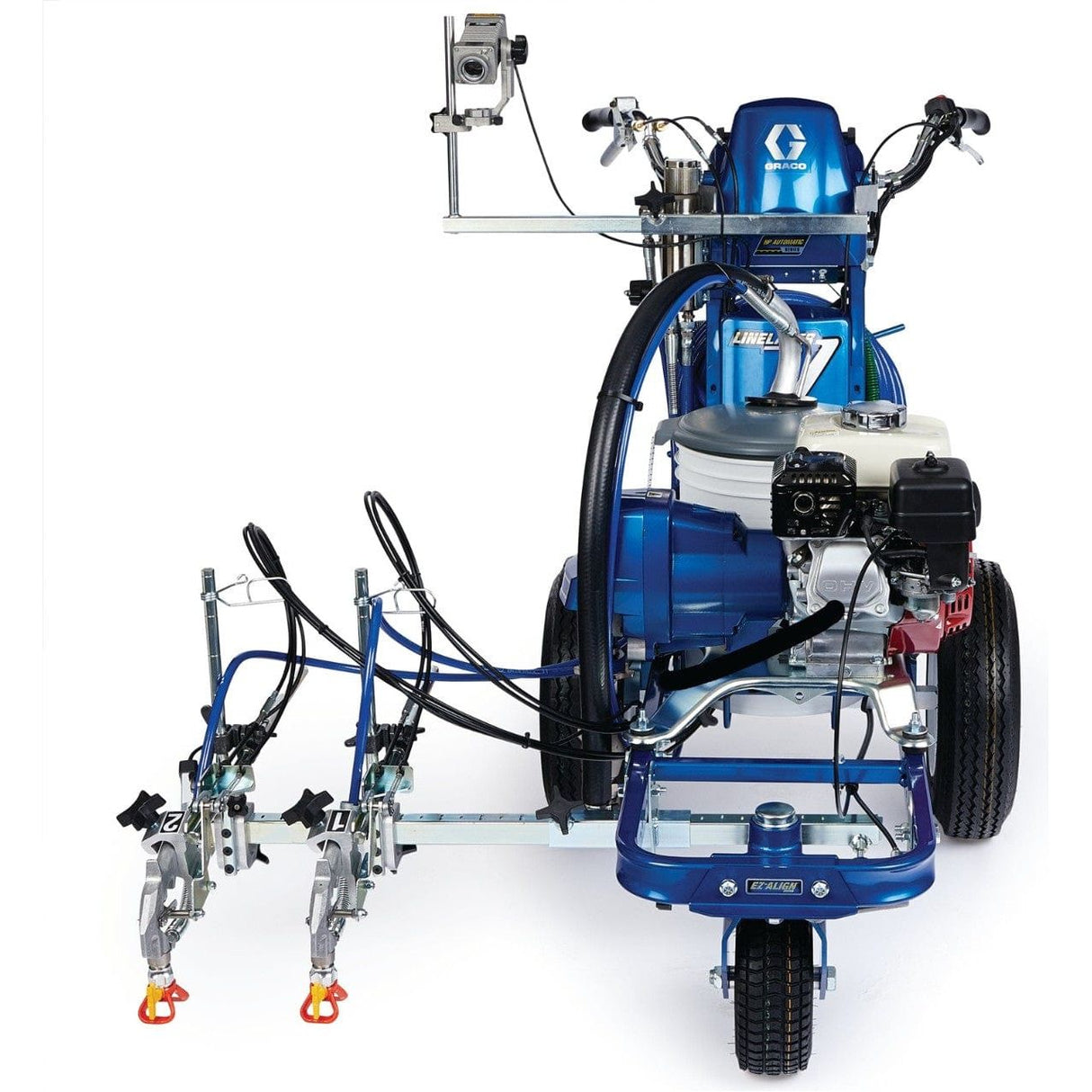

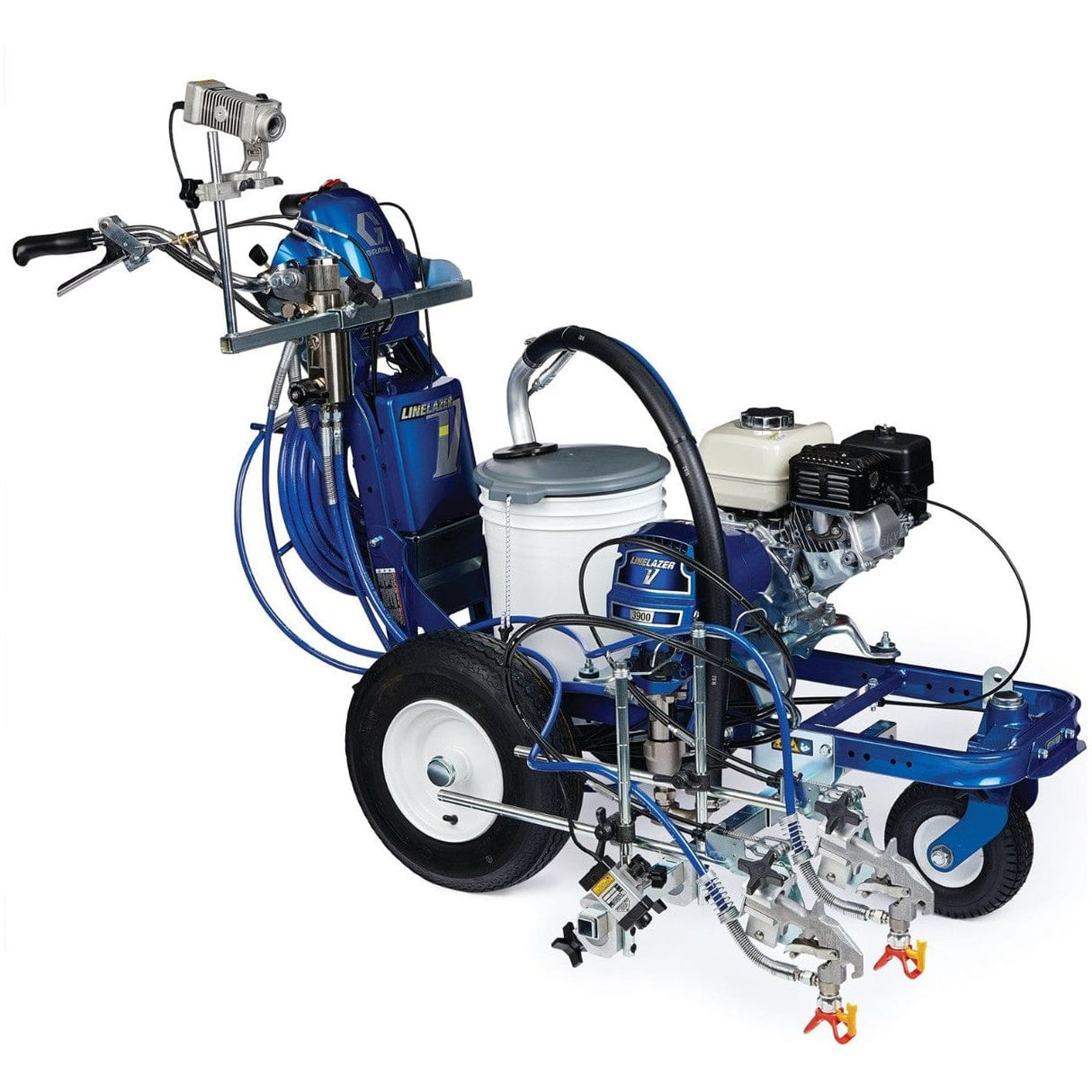

For those advanced striping jobs that require layout work or skip lines, the LineLazer V 3900 HP Automatic Series line striper includes additional features to help you work smarter, finish jobs faster, and increase your profitability.

The HP Automatic Series adds enhanced features that provide contractors with automatic line production capability, including skip lines, as well as real-time job performance data for proof-of-job requirements.

  • Automatic Paint Gun System

    • Automatically Stripe Skip-Lines

    • Reduce operator fatigue — push button line production

    • Quality solenoid-driven system

  • Auto-Layout II

    • Simplify Parking Lot Layout

    • SmartControl measures while you walk and puts down pre-marks

    • No need for measuring tape, string lines, or aerosol cans

    • Cuts your layout time in half

  • LazerGuide 2000 Laser-Guided Layout System

    • Improve productivity with less set-up time for higher profits

    • Easy, one-person laser-quality line production

    • Eliminate the need for tape measures, string or chalk

  • LiveLook Display with SmartControl

    • Striping Information At-A-Glance

    • Track, measure, and control every aspect of your job

    • Accessible proof-of-job data from the J-Log System with USB Download

    • Consistent spraying pressure for perfect lines

  • J-Log System with USB Download

    • Valuable Job Information

    • Proof of job = More striping opportunities.

    • USB download capability allows you to capture and save all job data

  • Honda GX Engine

    • Reliable, Easy-to-Start Power

    • Contractor-preferred — excellent power and proven reliability

    • Oil Alert shuts down the engine to prevent damage if the oil level drops too low

  • EasyMark Gun Adjustment System

    • Easy Gun Adjustments

    • Perfect gun alignment every time with an easy-to-use guide mark system

    • 2-gun capability with QuikSelect gun selector

  • EZ Align Wheel System

    • Perfect Striper Tracking

    • Simple front wheel alignment, no special tools needed

  • DualComfort Handlebar System

    • Easy Handlebar Adjustment

  • Additional Features

    • Endurance Chromex Pump

    • QuikSelect Gun Selector

    • Easy Out Pump Filter

    • LazerGuide 1700 Start/Stop Laser

Technical Specifications


Attachments

LazerGuide 2000, LazerGuide 1700

Bead System

Optional

Compatible Material

Road-Marking Paint

Compatible Surfaces

Pavement, Turf

Engine Brand

Honda

Engine Model

GX120

Features

SmartControl

Fuel Tank Capacity (gal)

0.66

Gun Activation

2 Automatic

Includes

LazerGuide 2000, LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz

Maximum Flow Rate (GPM)

1.25

Maximum Tip Size (in)

0.036

Maximum Working Pressure (psi)

3300

Model

LineLazer V

Number of Colors

One Color

Number of Guns

2

Number of Pumps

1

Power Rating (HP)

4

Power Rating (W)

2980

Power Rating (kW)

2.98

Power Source

Gas

Product Series

HP Automatic

Pump Type

Endurance

Series

3900

Type

Walk-Behind Line Striper

Weight (lb)

240
