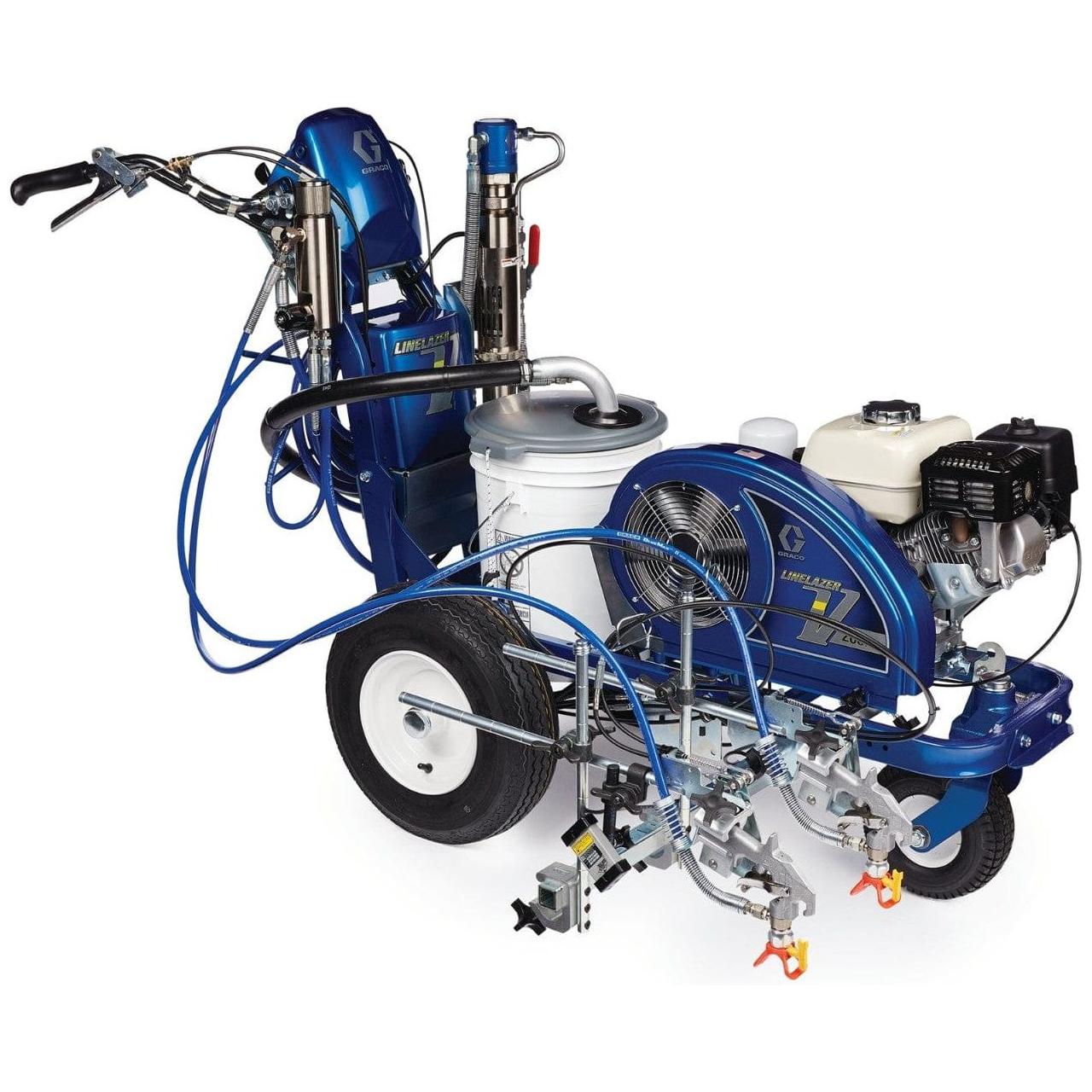

The LineLazer V 200HS HP Automatic Series is a heavy-duty workhorse built for high-performance striping on demanding projects such as large parking lots, airports, and city streets that require precision lines.

This HP Automatic Series is equipped with advanced features that allow contractors to produce automatic skip lines and access real-time job performance data—perfect for proof-of-job requirements.

Key Features

Automatic Paint Gun System

  • Stripe skip lines automatically

  • Reduces operator fatigue with push-button line production

  • Quality solenoid-driven system ensures reliability

Auto-Layout II

  • Simplifies parking lot layout

  • SmartControl measures while you walk and applies pre-marks

  • Eliminates the need for tape, string lines, or aerosol cans

  • Cuts layout time by 50%

LiveLook Display with SmartControl

  • Easy-to-read job information at a glance

  • Tracks, measures, and controls every job detail

  • Proof-of-job data accessible through J-Log System with USB download

  • Consistent spray pressure for sharp, perfect lines

J-Log System with USB Download

  • Records and saves valuable job data

  • Provides proof of job completion to secure more striping opportunities

Honda GX Engine

  • Reliable, contractor-preferred power source

  • Easy starting with proven durability

  • Oil Alert feature prevents damage by shutting down the engine when oil is low

EasyMark Gun Adjustment System

  • Simple gun alignment every time with guide marks

  • Supports 2-gun capability using QuikSelect gun selector

EZ Align Wheel System

  • Ensures accurate striper tracking

  • Easy front wheel alignment without special tools

DualComfort Handlebar System

  • Adjustable handlebars for operator comfort

Endurance Chromex Pump

  • Long-lasting, field-proven design

  • Handles demanding materials with advanced rod treatment

  • 4x harder than standard chrome for maximum durability

Additional Features

  • High-efficiency hydraulic motor

  • High-capacity cooling system

  • QuikSelect Gun Selector

  • Easy Out Pump Filter

  • LazerGuide 1700 Start/Stop Laser for precision

Technical Specifications

Attachments

None

Compatible Material

Road-Marking Paint

Compatible Surfaces

Pavement, Turf

Engine Brand

Honda

Engine Model

GX200

Fuel Tank Capacity (gal)

0.95

Gun Activation

2 Automatic

Includes

LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 22 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz

Maximum Flow Rate (GPM)

2.15

Maximum Sound Pressure Level (dB(A))

86.5

Maximum Tip Size (in)

0.047

Maximum Working Pressure (psi)

3300

Model

LineLazer V

Number of Colors

One Color

Number of Guns

2

Number of Pumps

1

Power Rating (HP)

6.5

Power Rating (W)

4850

Power Rating (kW)

4.85

Power Source

Gas Hydraulic

Product Series

HP Automatic

Pump Type

Endurance

Series

200HS

Type

Walk-Behind Line Striper

Weight (lb)

322
