Description

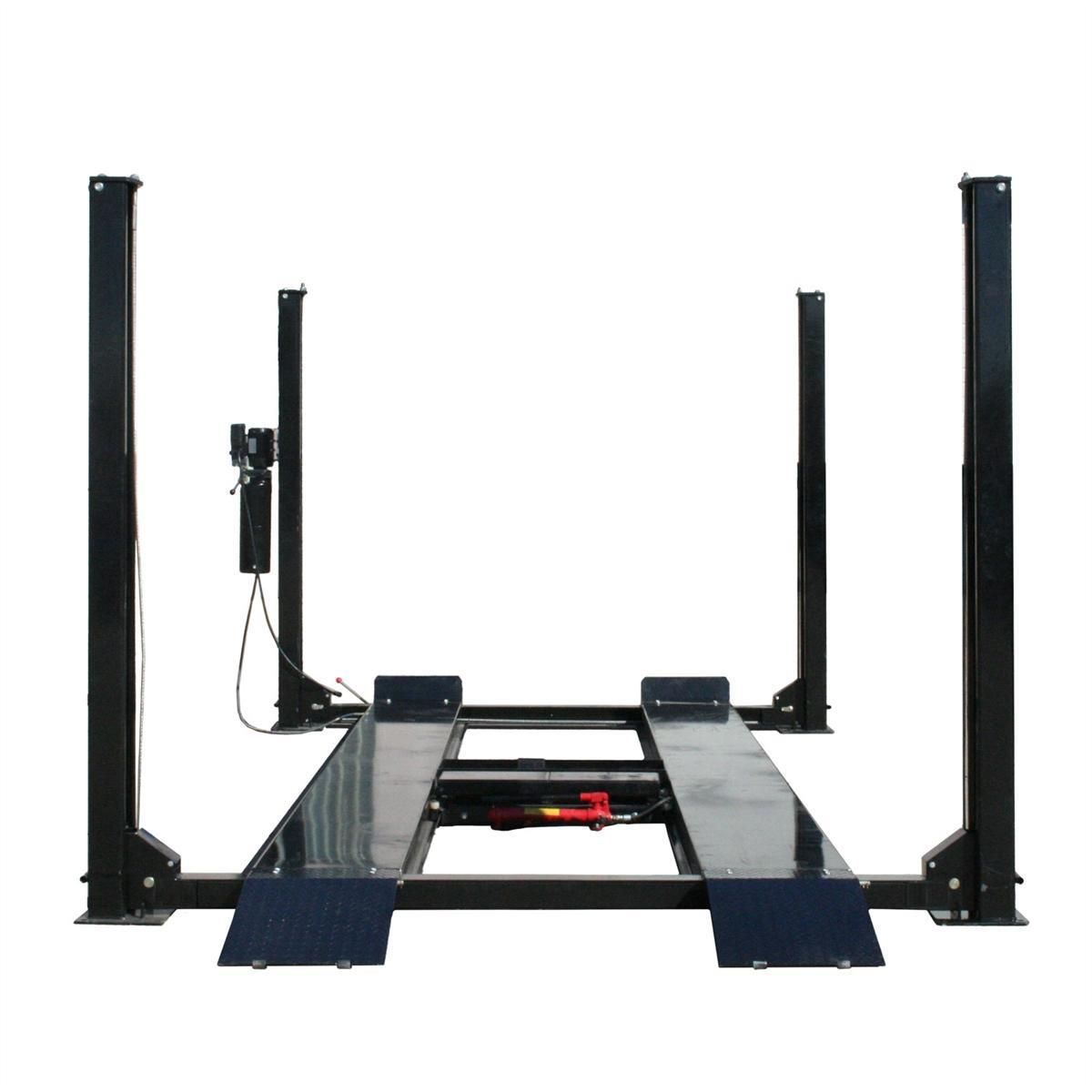

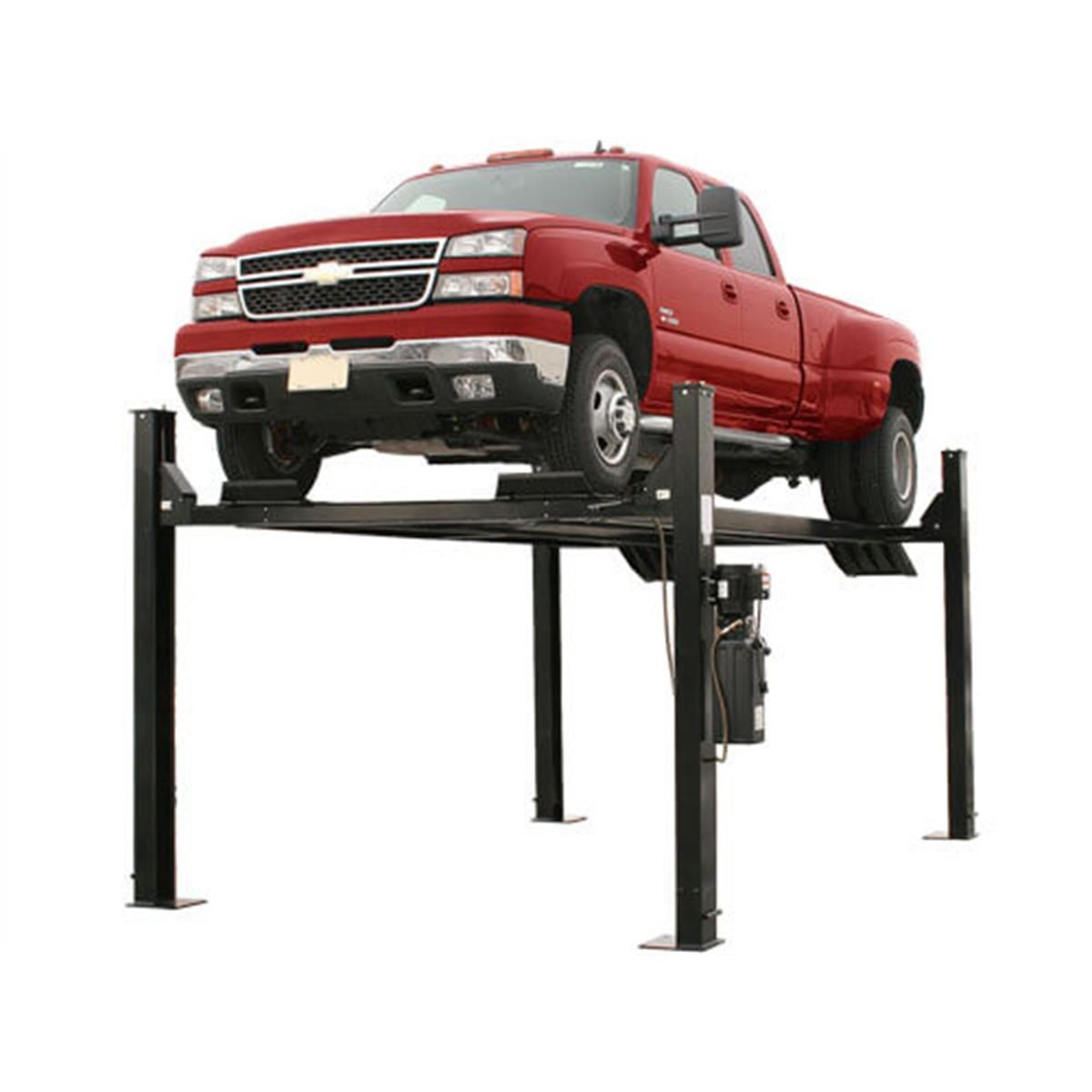

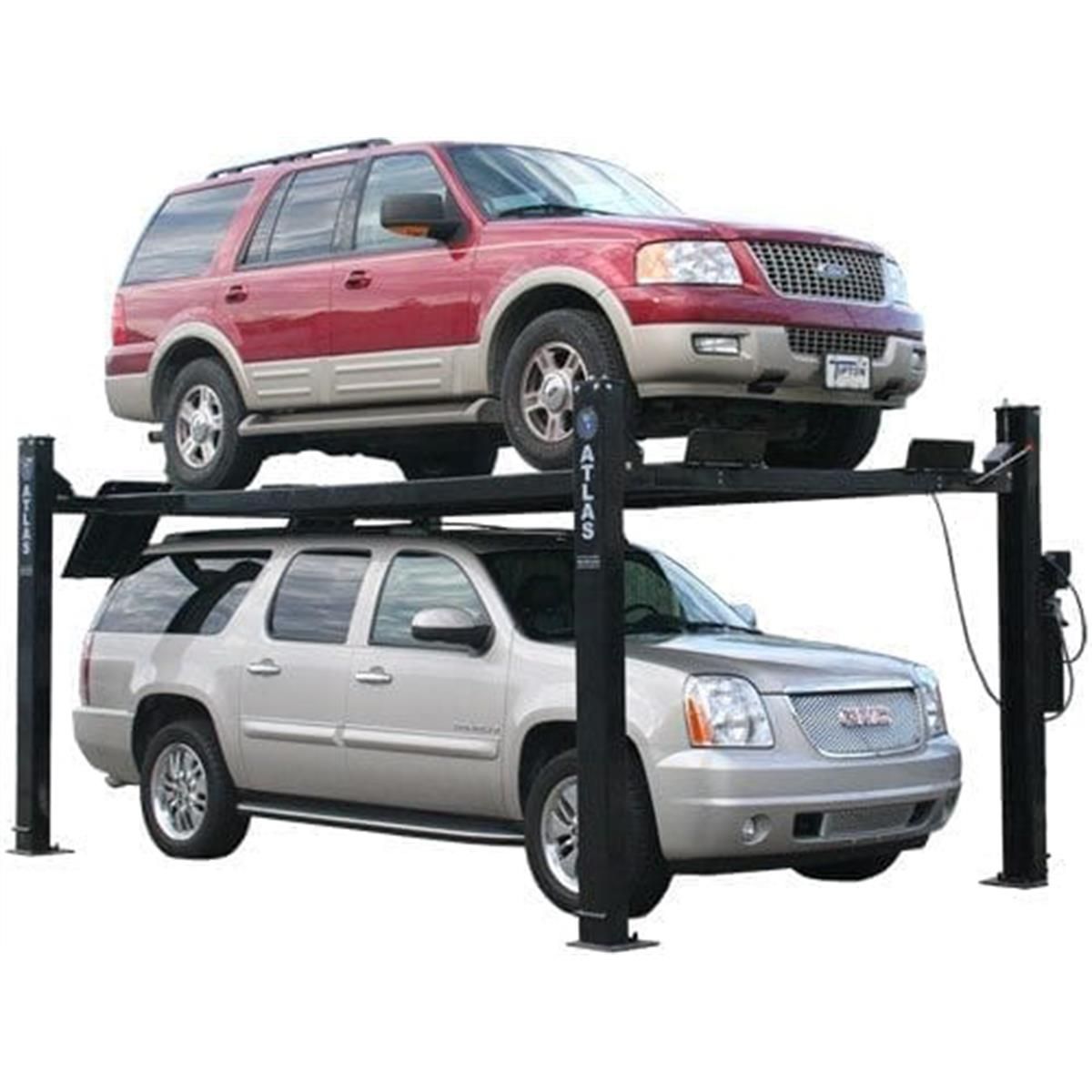

The Atlas® Garage PRO9000 four-post lift is a heavy-duty hobbyist model and offers the highest lifting capacity within the Garage PRO series. The PRO9000 is extra-long and features some of the longest runways available in a portable 9,000 lb. four-post lift, allowing it to accommodate extended wheelbase vehicles. Its extra-wide design enables even diesel dually trucks to be driven onto the runways. With increased overall height, the lift provides sufficient clearance for vehicles ranging from Smart Cars® to full-size dually trucks, both on the platform and underneath.

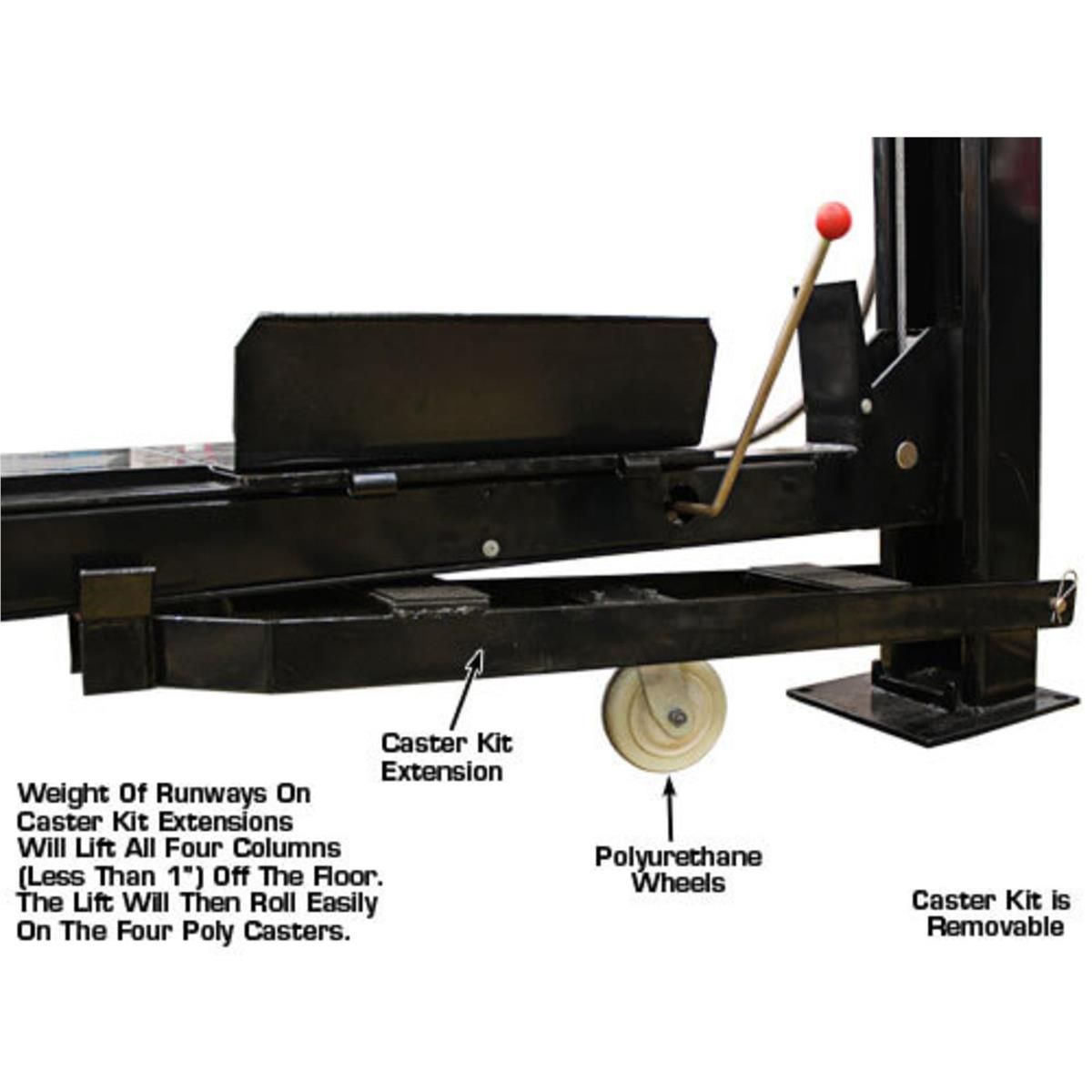

The Atlas® Garage PRO9000 weighs approximately 600 lbs. more than the Atlas® Garage PRO8000, making it one of the heaviest portable hobbyist lifts available. This above-ground four-post lift incorporates features not commonly found in competing models. The Garage PRO9000 includes plastic drip trays, a steel jack tray, and a caster kit with polyurethane wheels at no additional cost. The caster kit can be quickly installed or removed, allowing the lift to remain portable and easily repositioned between service bays or outdoors. Additionally, the Garage PRO9000 is the only Garage PRO series model equipped with tracks between the runways, allowing compatibility with a rolling bridge jack such as the Atlas® RJ6BK.
With its commercial-grade features, the Garage PRO9000 is an ideal choice for automotive service centers or homeowners who require a portable professional four-post lift at a competitive price.
Please note: Delivery of any Atlas item requires access for a 53-foot truck.
Features
- 9,000 lb. Capacity
- Free-Standing / Portable Design
- Heavy-Duty Construction
- Extra Tall / Extra Wide / Extra Long Configuration

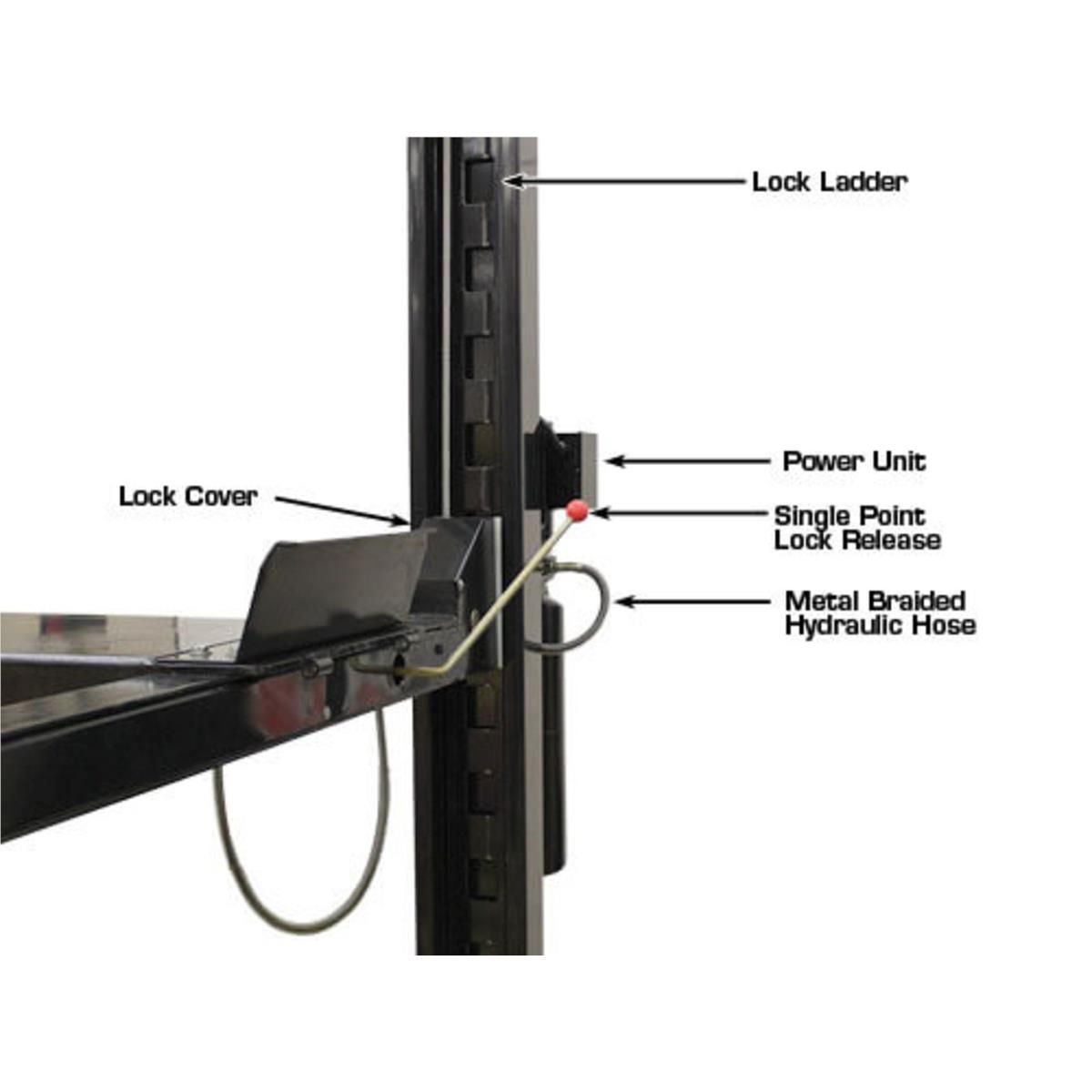

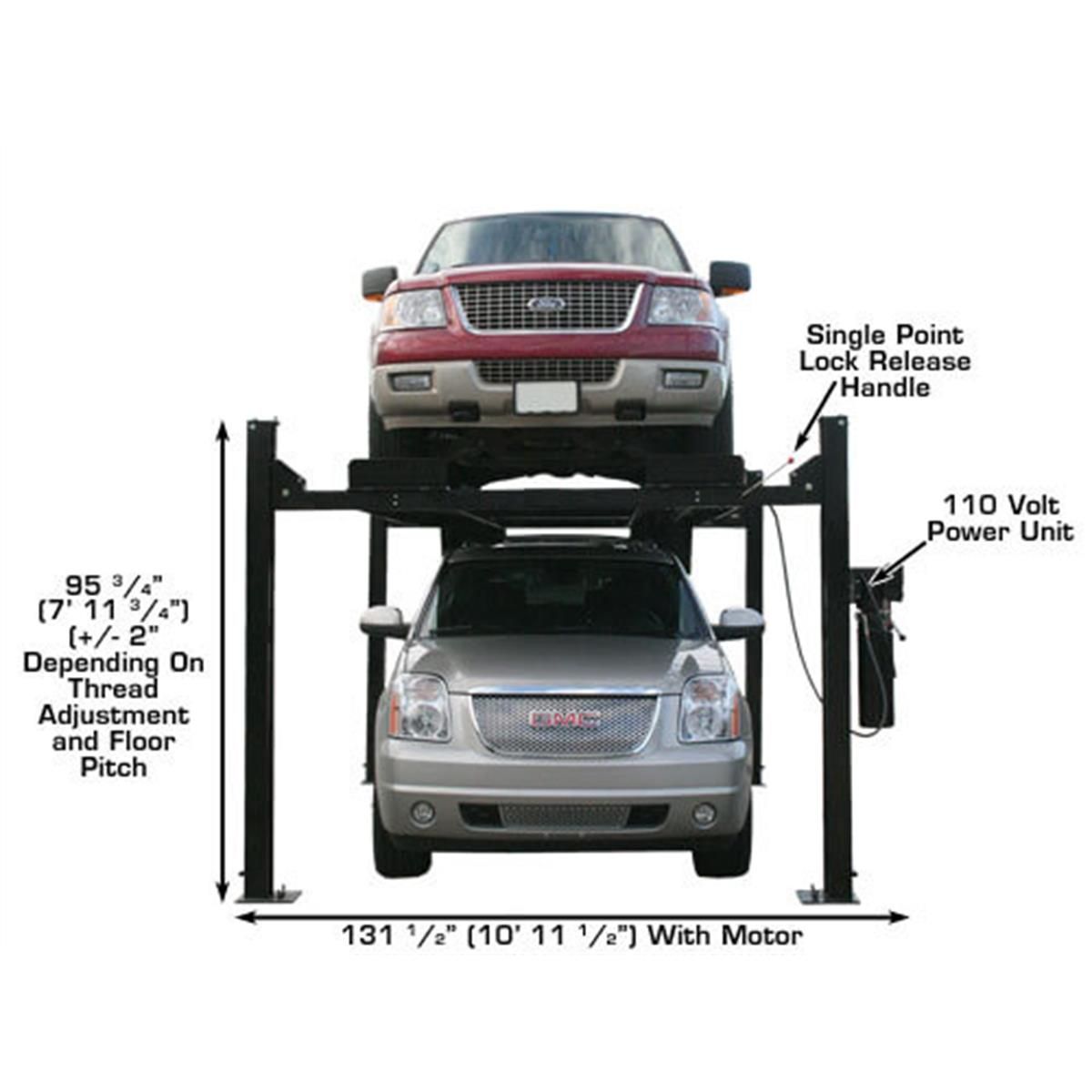

- Single-Point Lock Release

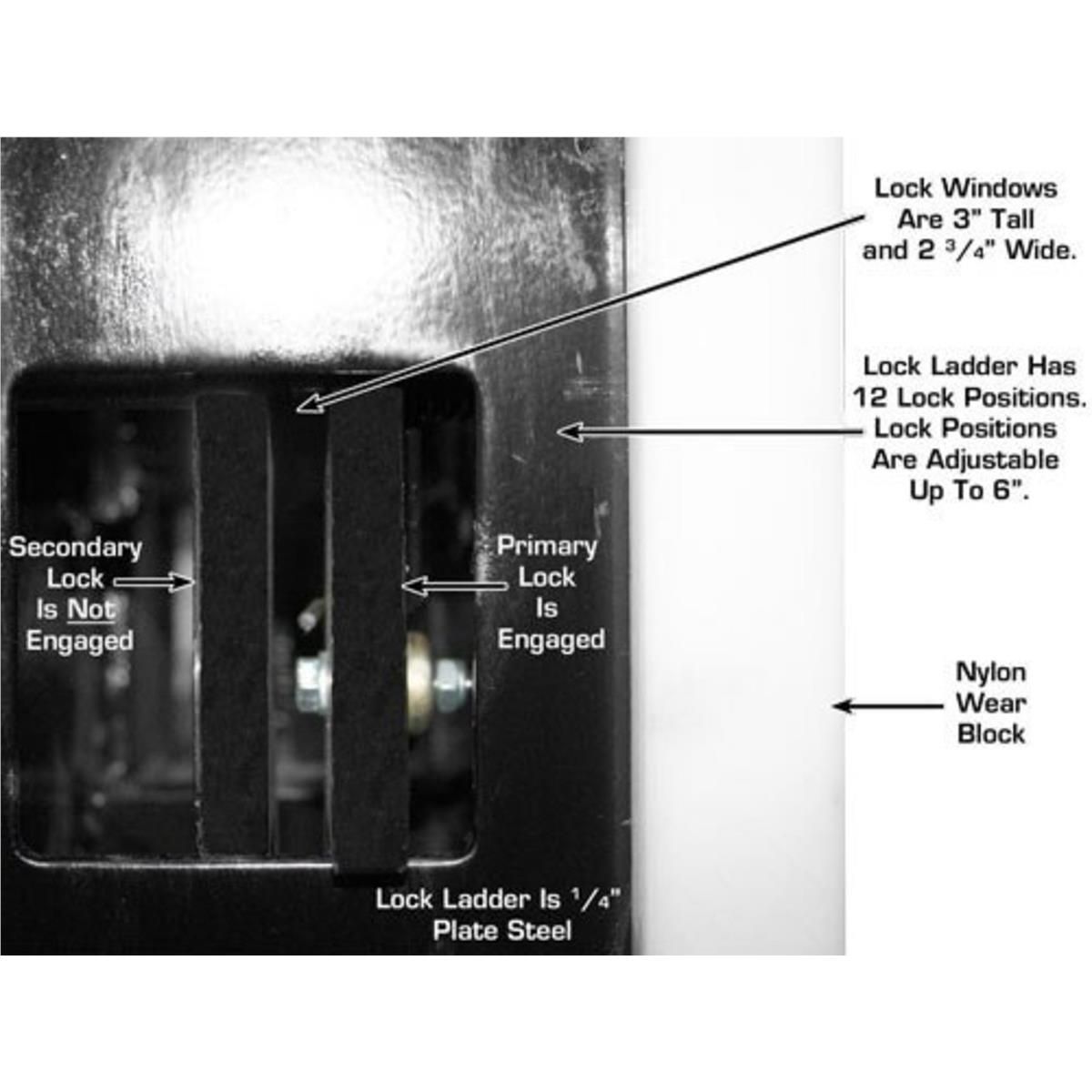

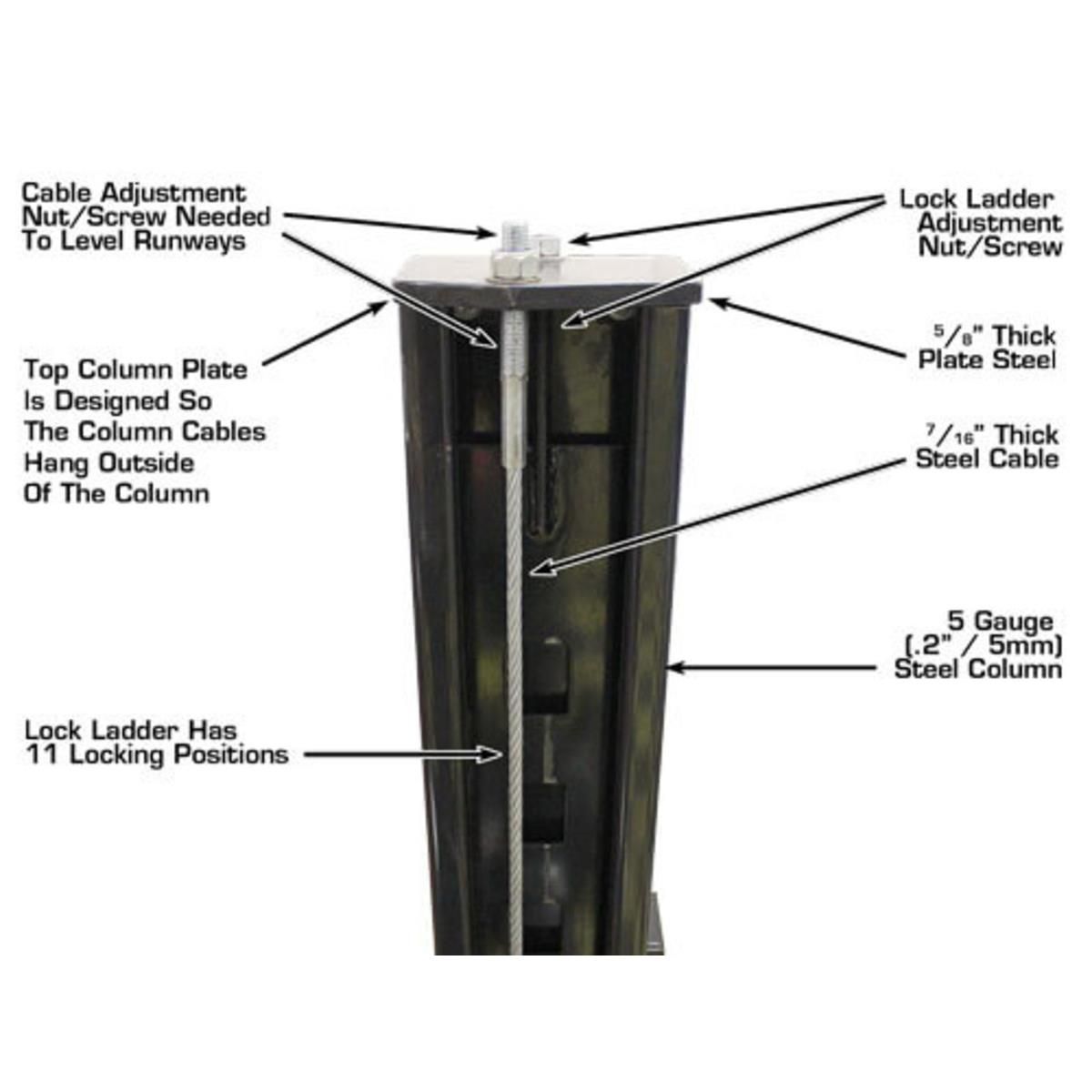

- Lock Ladder System

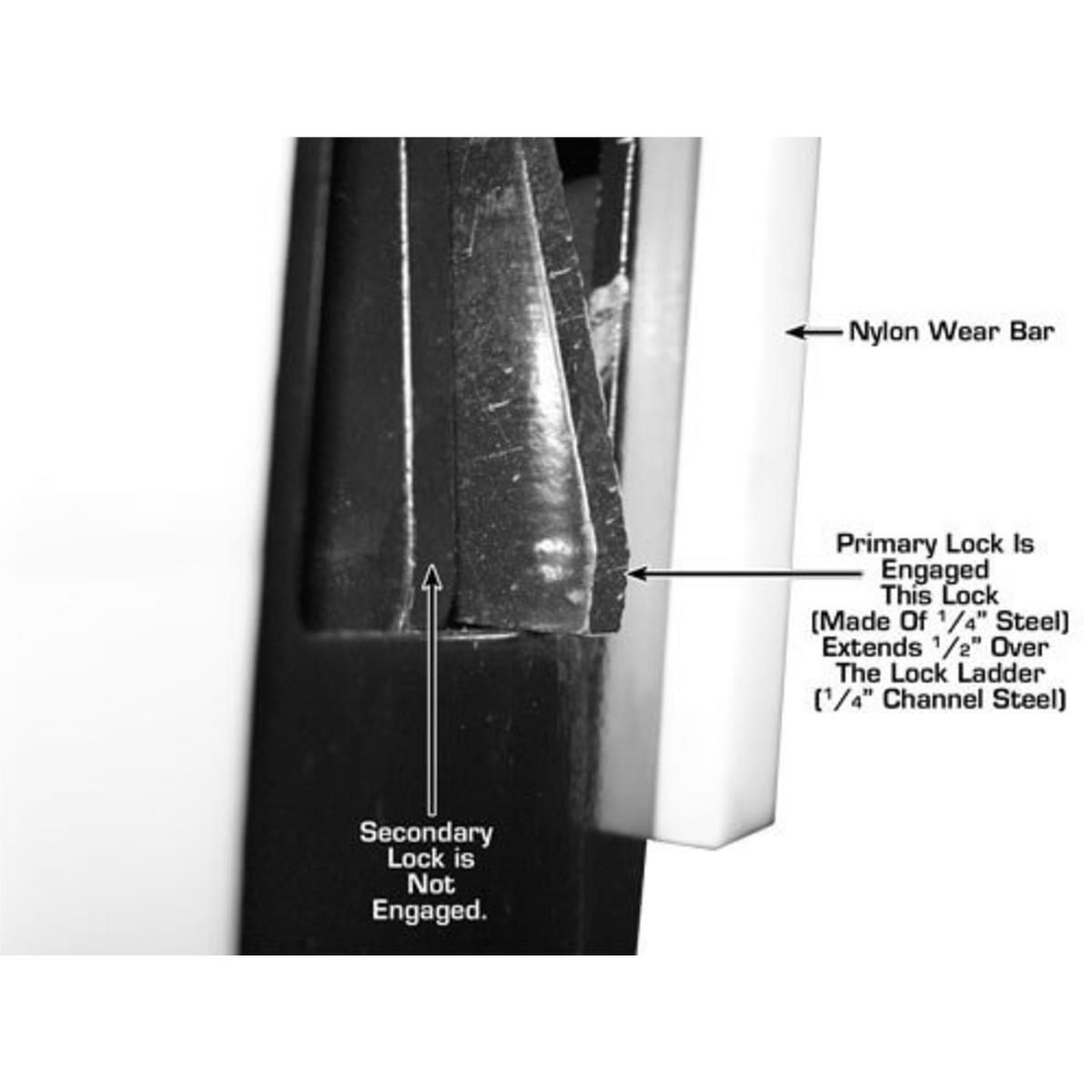

- Double Lock Safety System

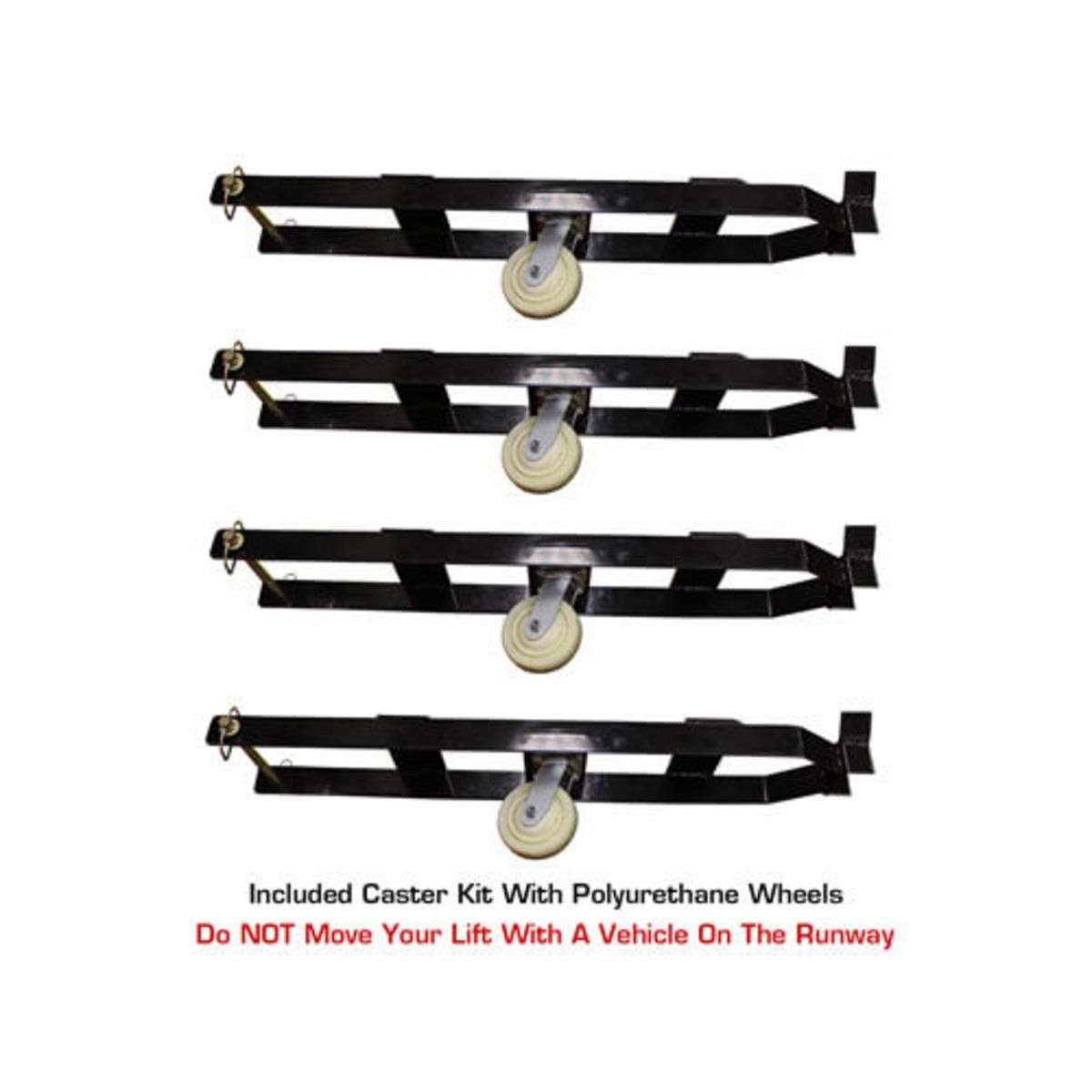

- Caster Kit with Polyurethane Wheels Included

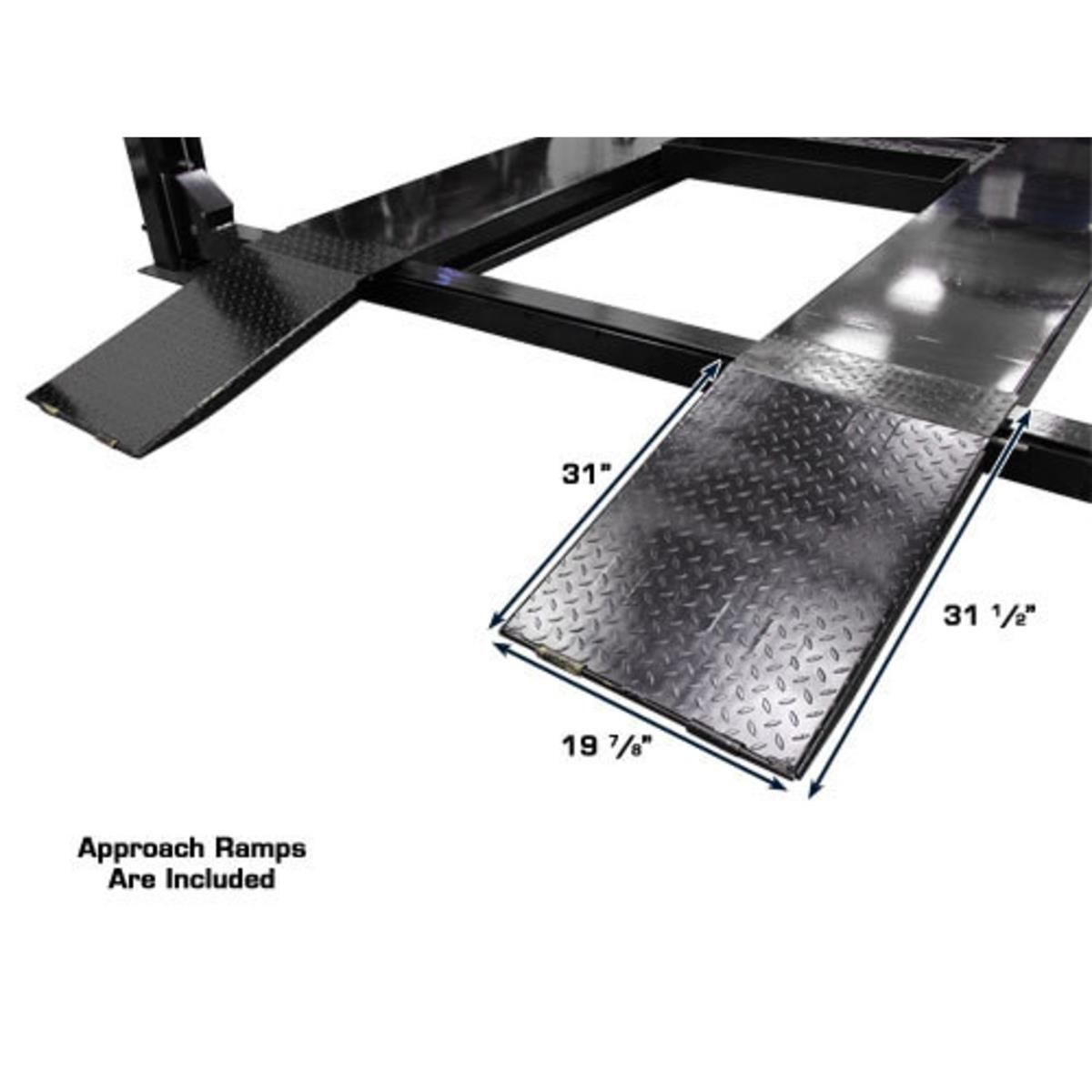

- Steel Approach Ramps Included

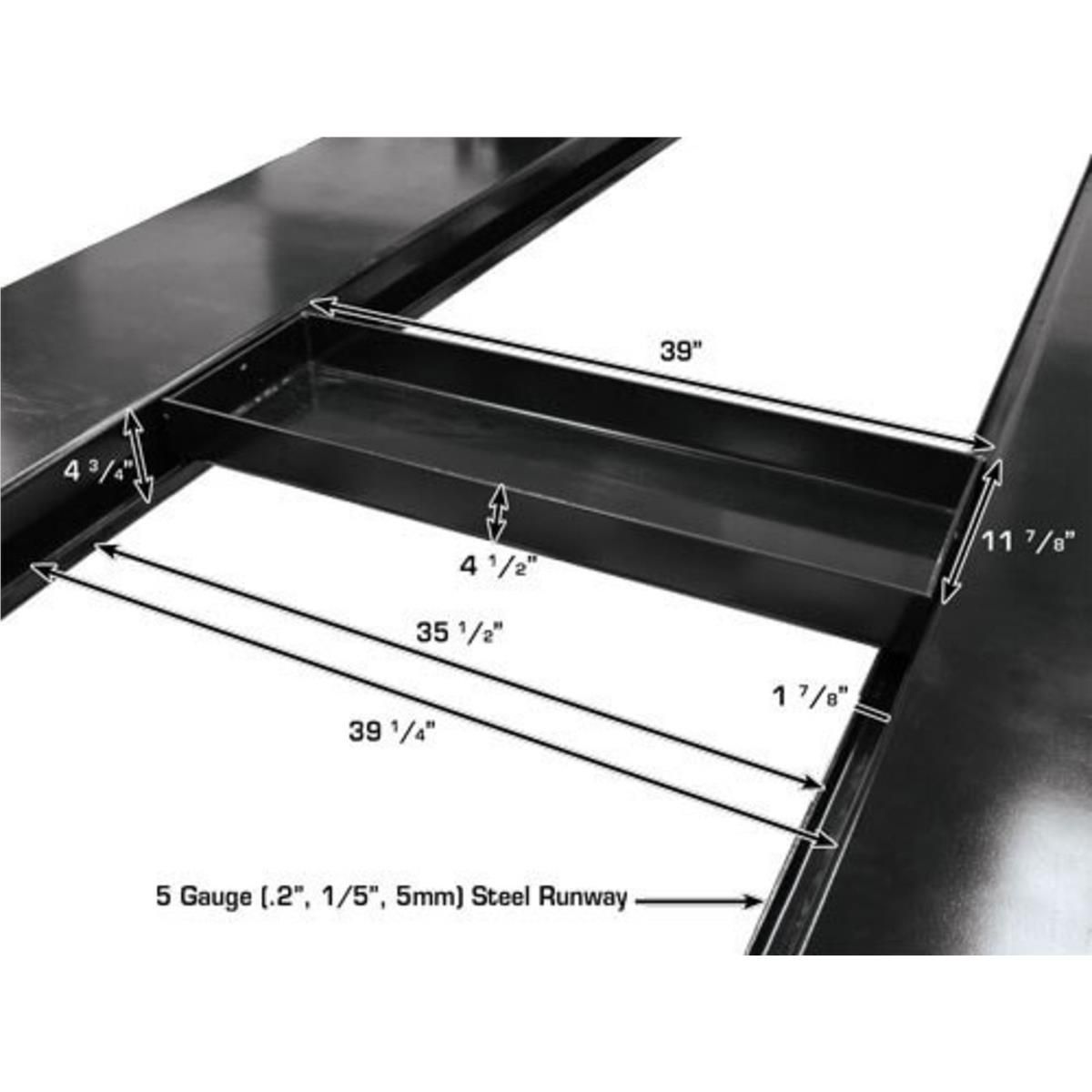

- Steel Jack Tray Included

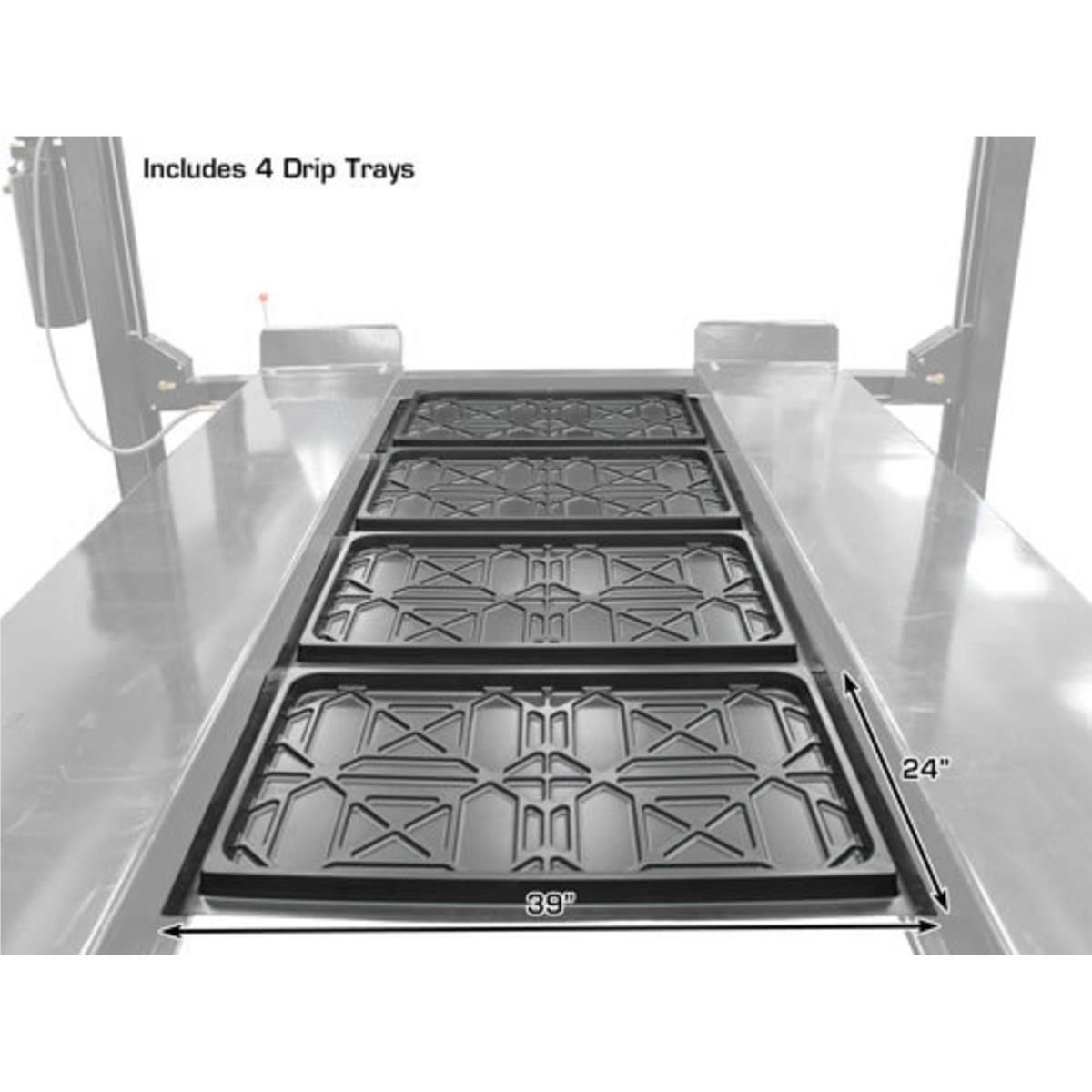

- Four Plastic Drip Trays Included

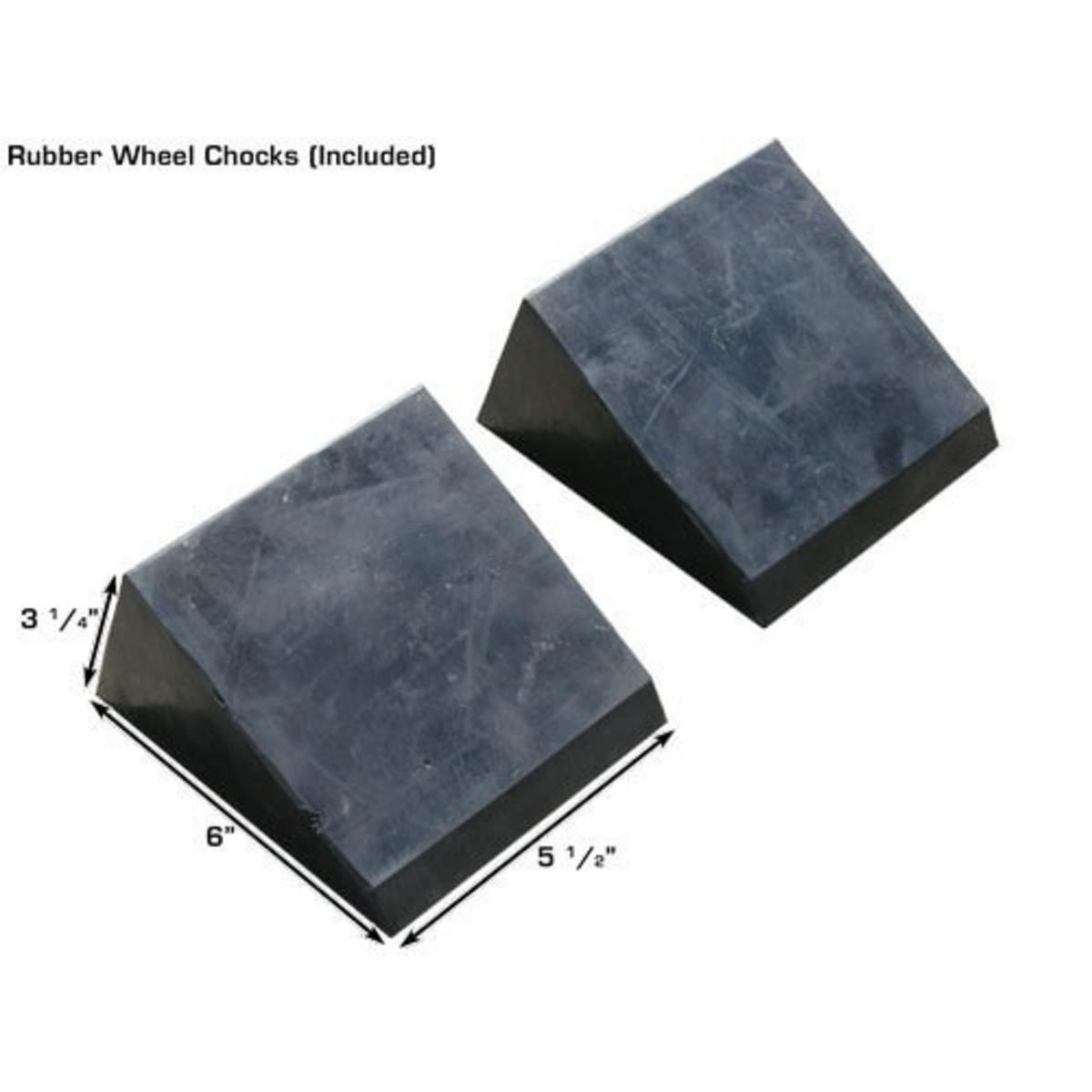

- Two Rubber Wheel Chocks Included

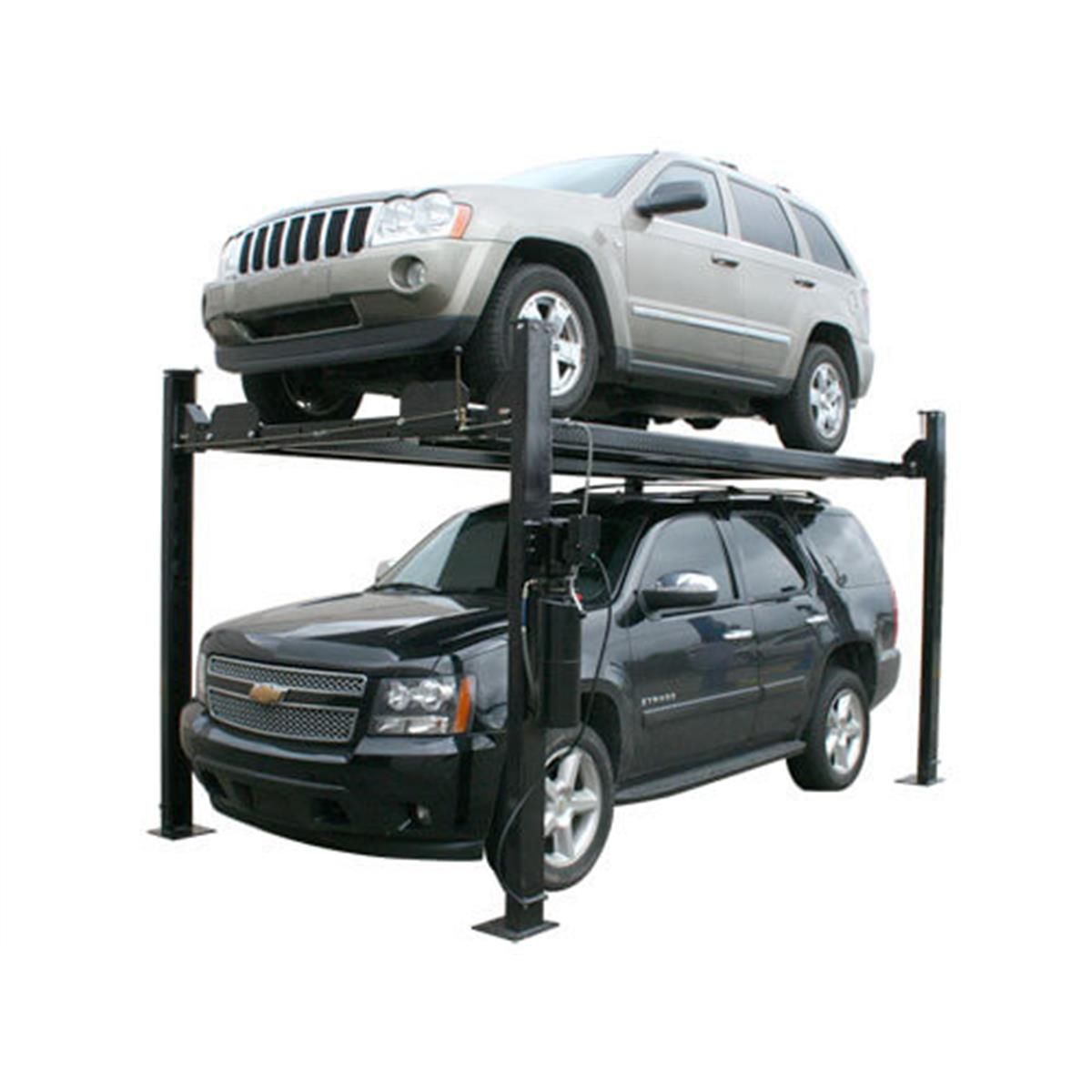

- Ideal for Vehicle Storage or Service
- 110 Volt Electric Operation (30 AMP BREAKER REQUIRED)

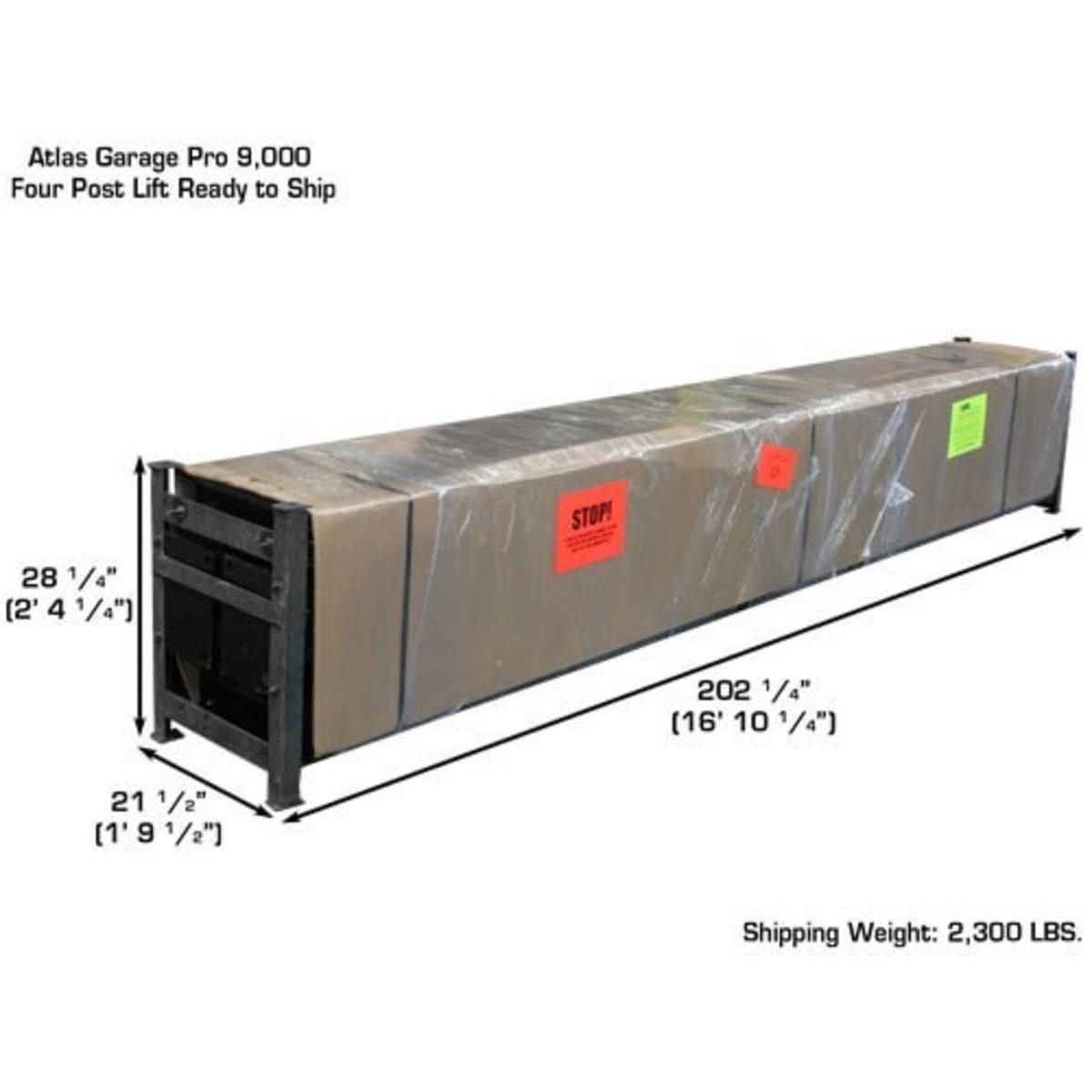

- Shipping Weight: 2,300 lbs.
- 2-Year Structural – 1-Year Hydraulic Warranty – Parts Only
Specifications

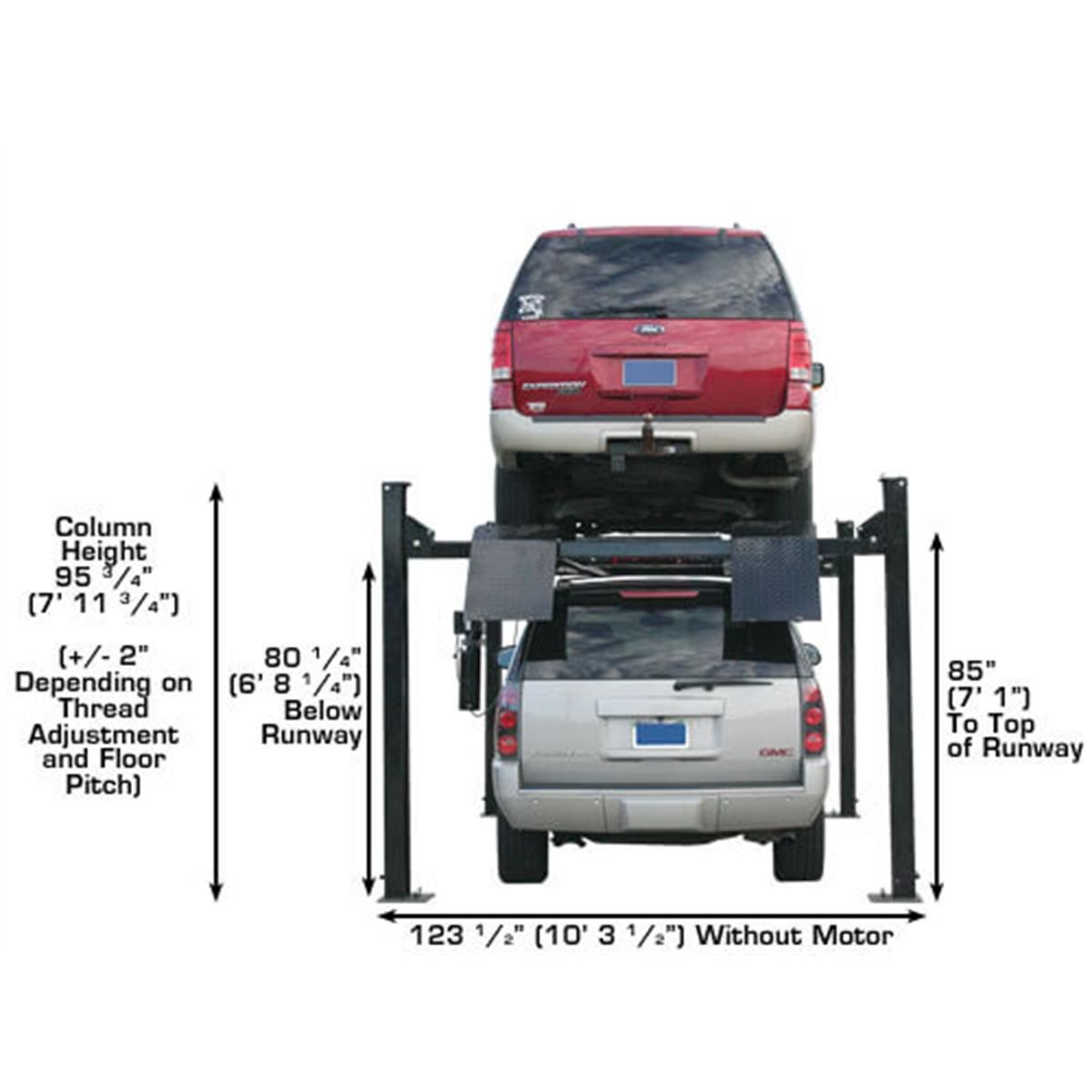

Atlas® Garage PRO9000 Specifications
| Specification | Details |
|---|---|
| Capacity | 9,000 lb. |
| Lifting Height to Top of Runway | 85" (7' 1") |

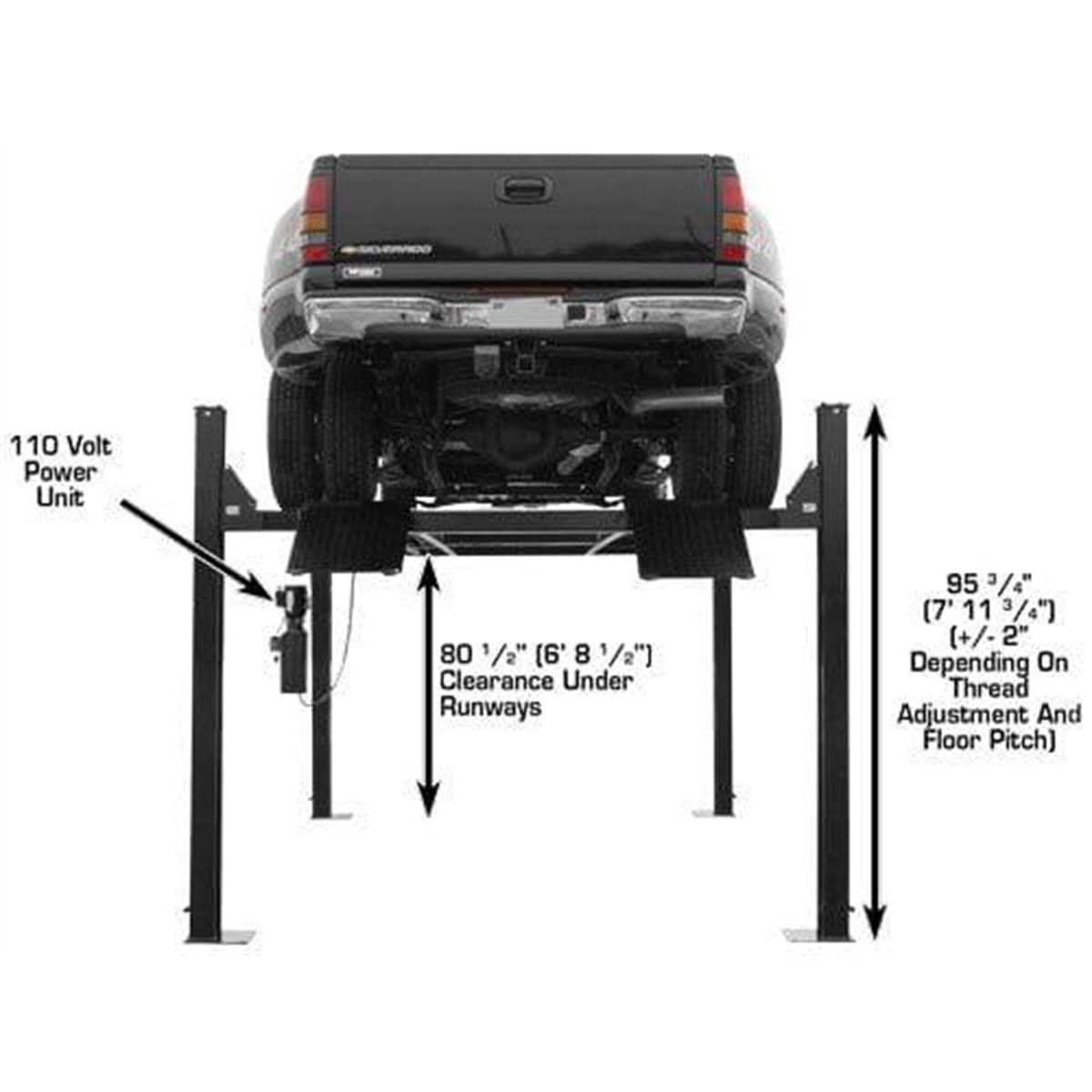

| Clearance Under Runways | 80 1/4" (6' 8 1/4") |

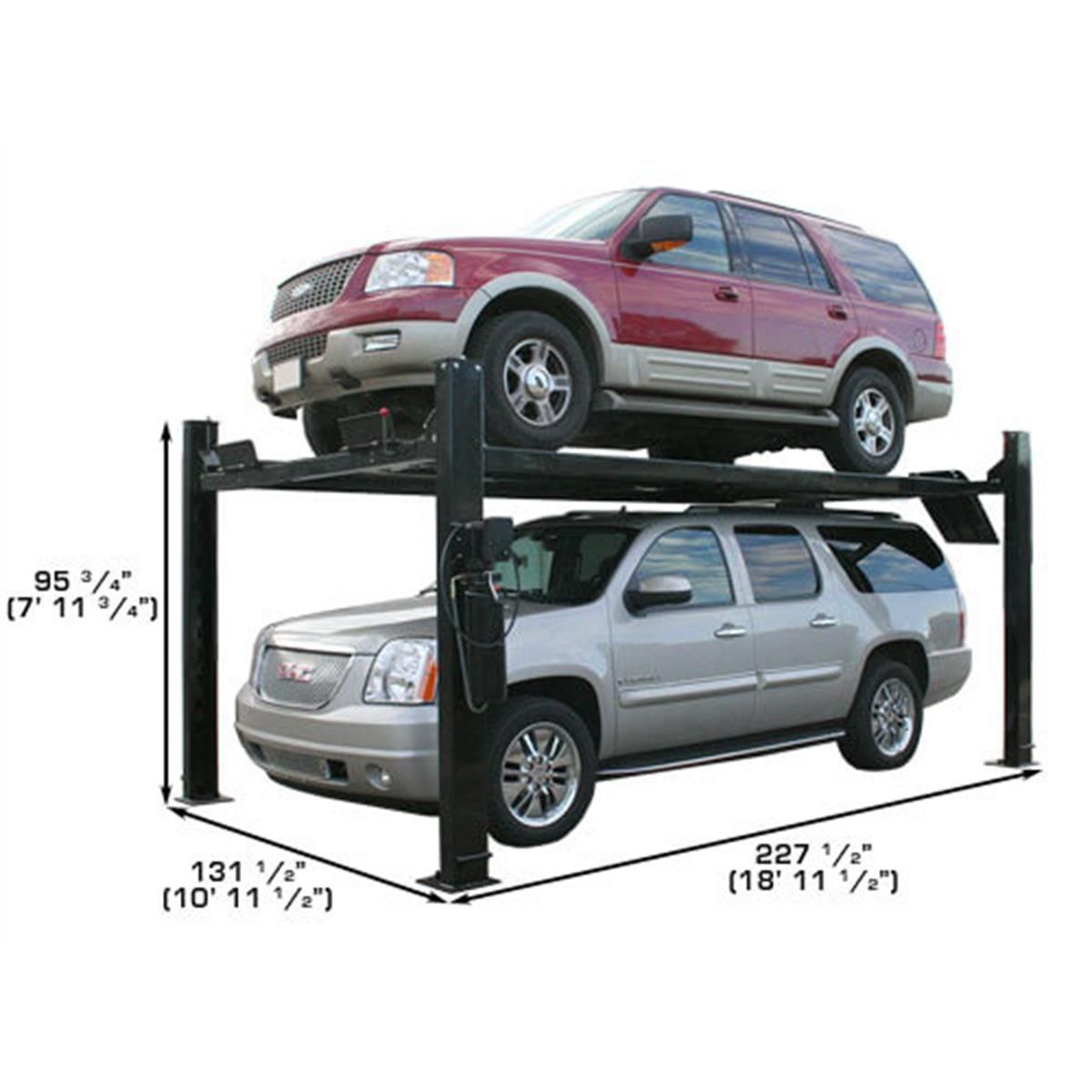

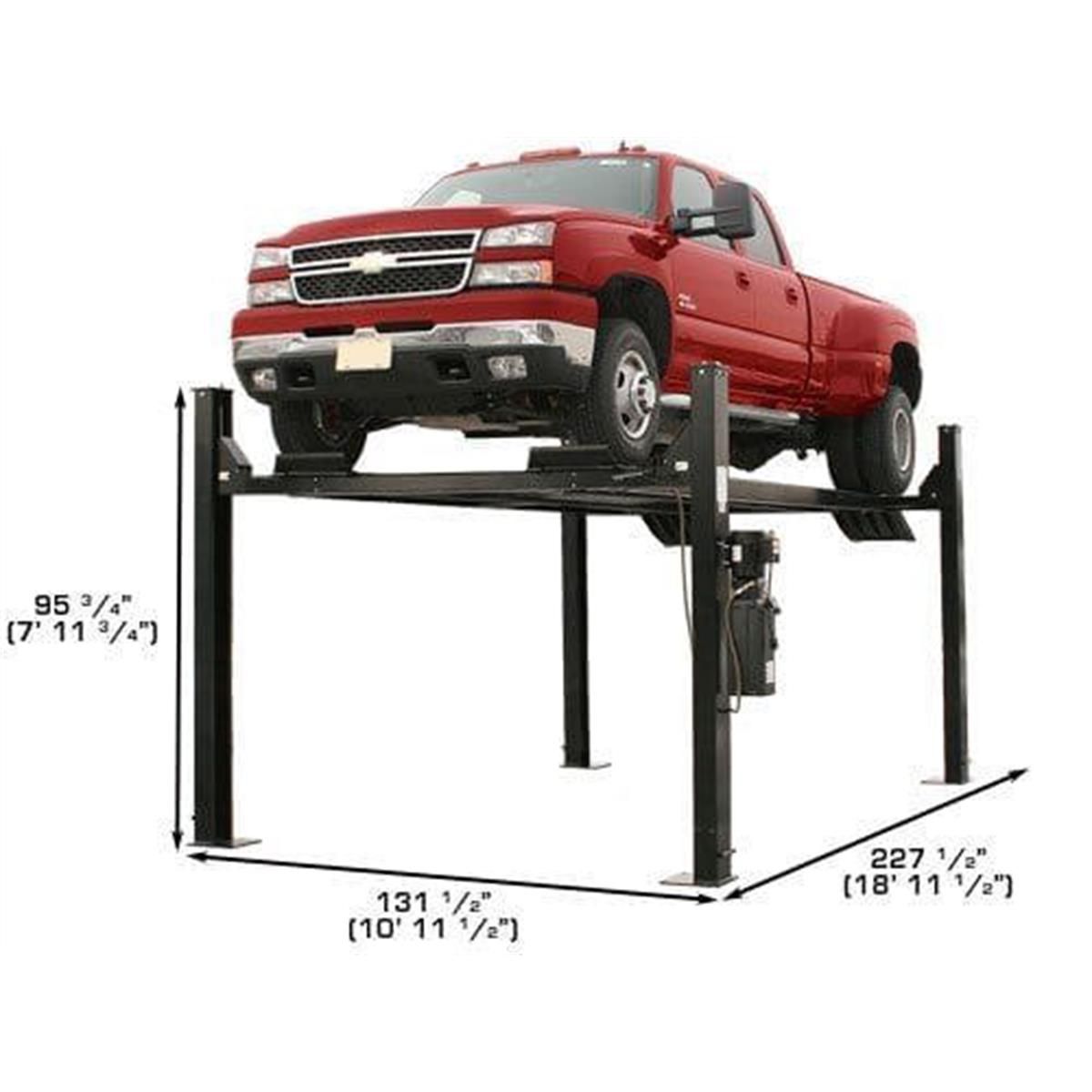

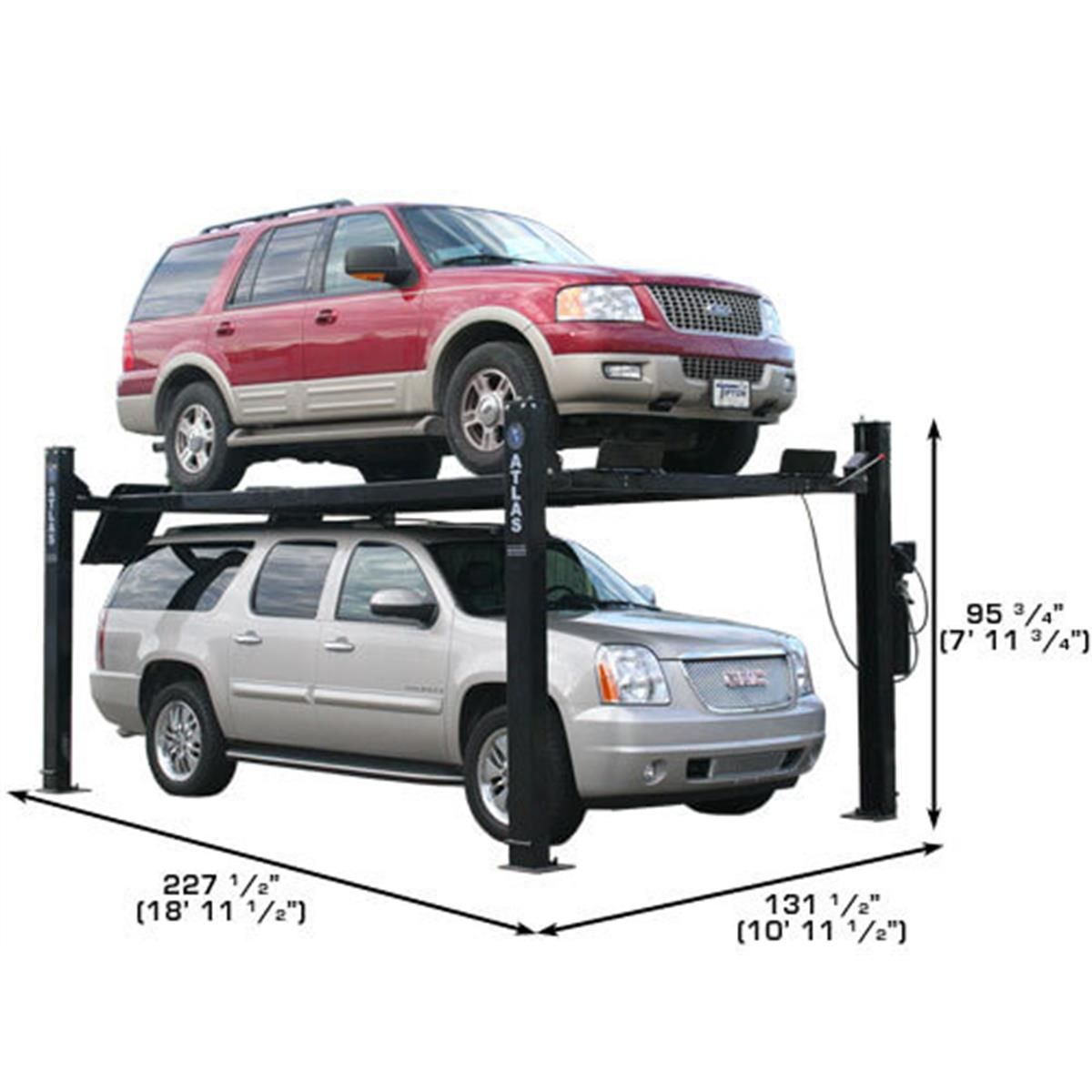

| Height of Columns | 95 3/4" (7' 11 3/4") |
| Overall Width (Without Motor) | 123 1/2" (10' 3 1/2") |
| Overall Width (With Motor) | 131 1/2" (10' 11 1/2") |

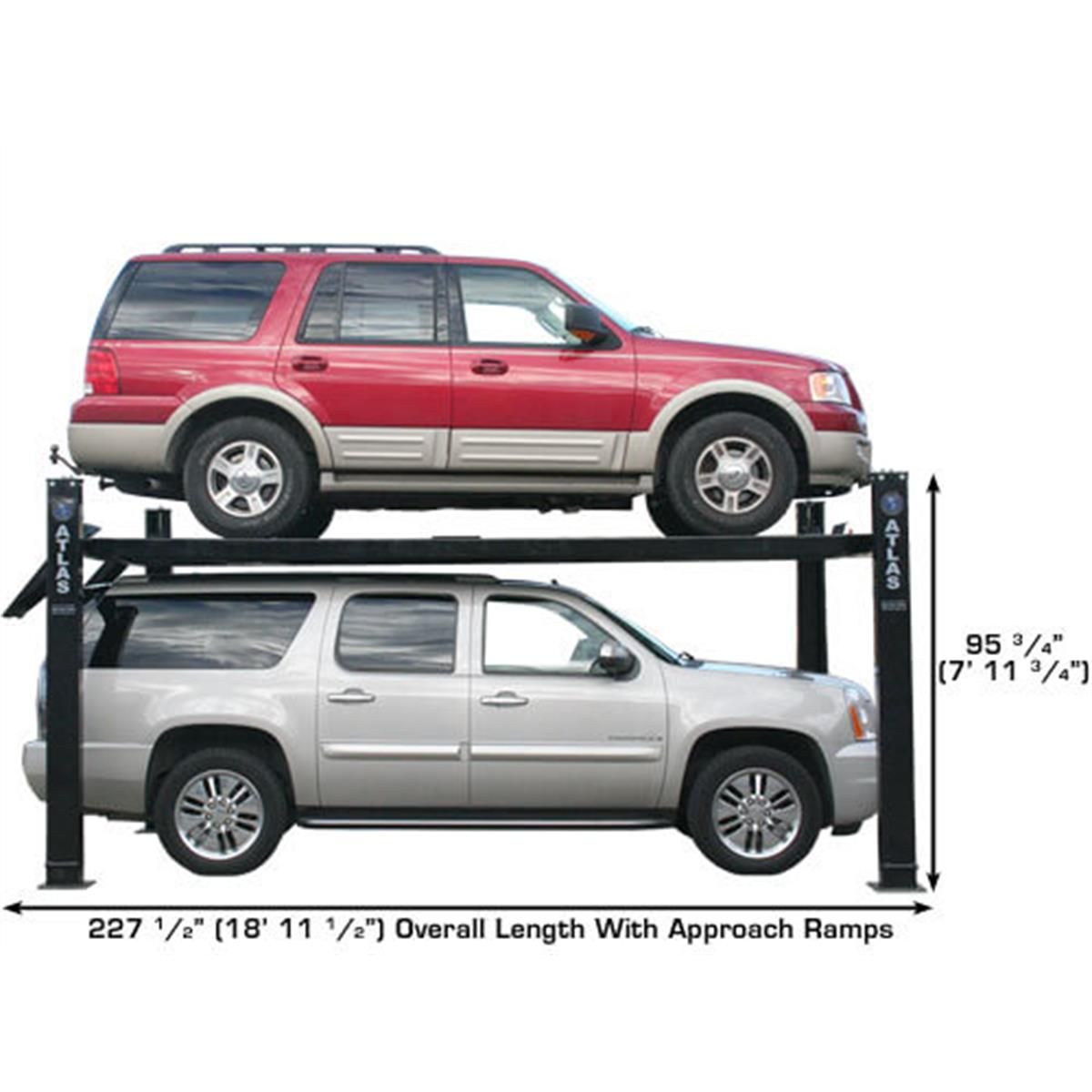

| Overall Length with Approach Ramp | 227 1/2" (18' 11 1/2") |
| Approach Ramp | 31" (2' 7") |
| Runway Width | 21 1/4" (with Rails) or 20" (Driving Surface) |
| Runway Length | 199 1/2" (16' 7 1/2") |
| Runway Thickness | 4 3/4" |
| Width Between Runways | 39 1/4" (3' 3 1/4") |
| Width Between Runway Rails | 35 1/2" (2' 11 1/2") |
| Outside Runway to Outside Runway | 79" (6' 7") |

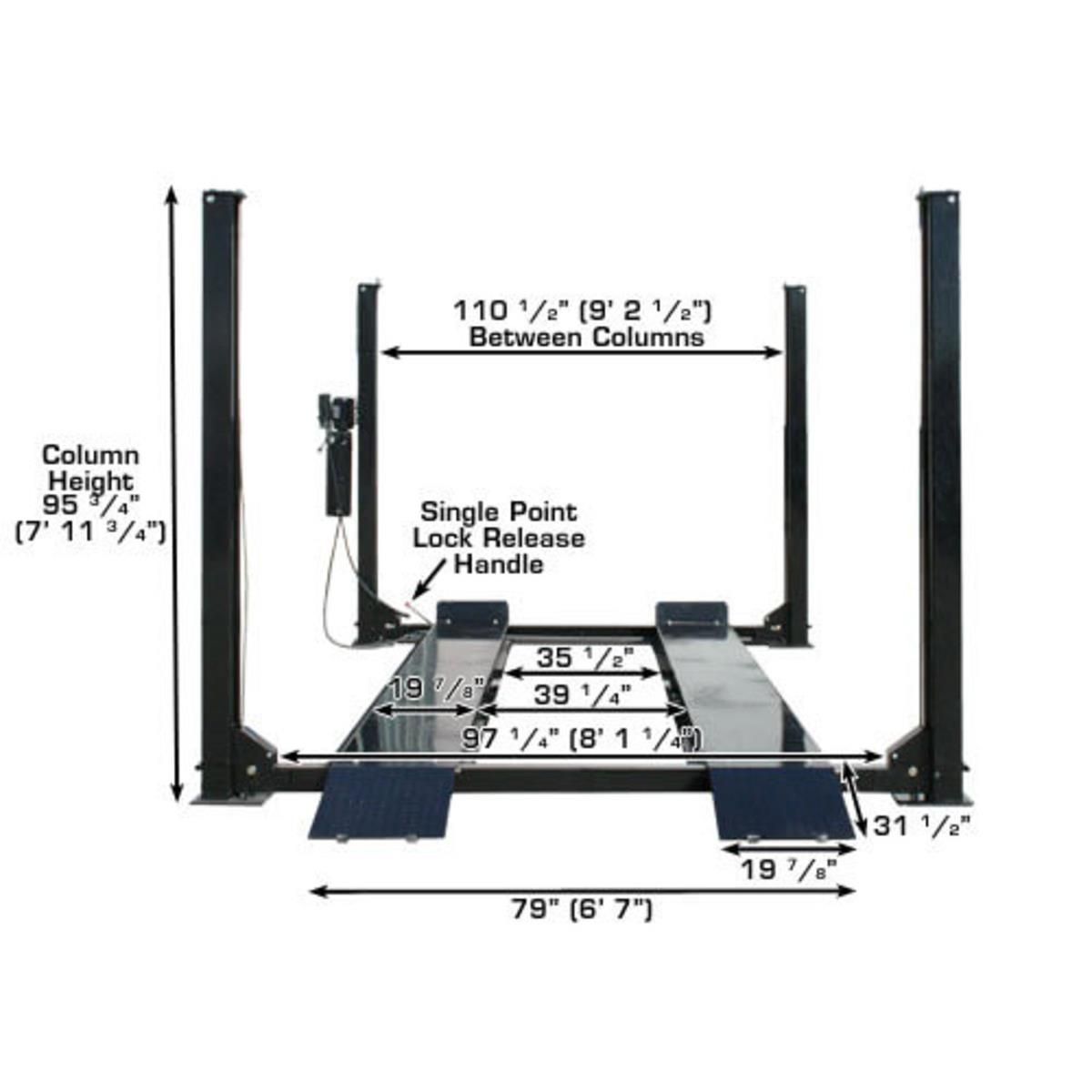

| Clearance Between Columns | 110 1/2" (9' 2 1/2") |

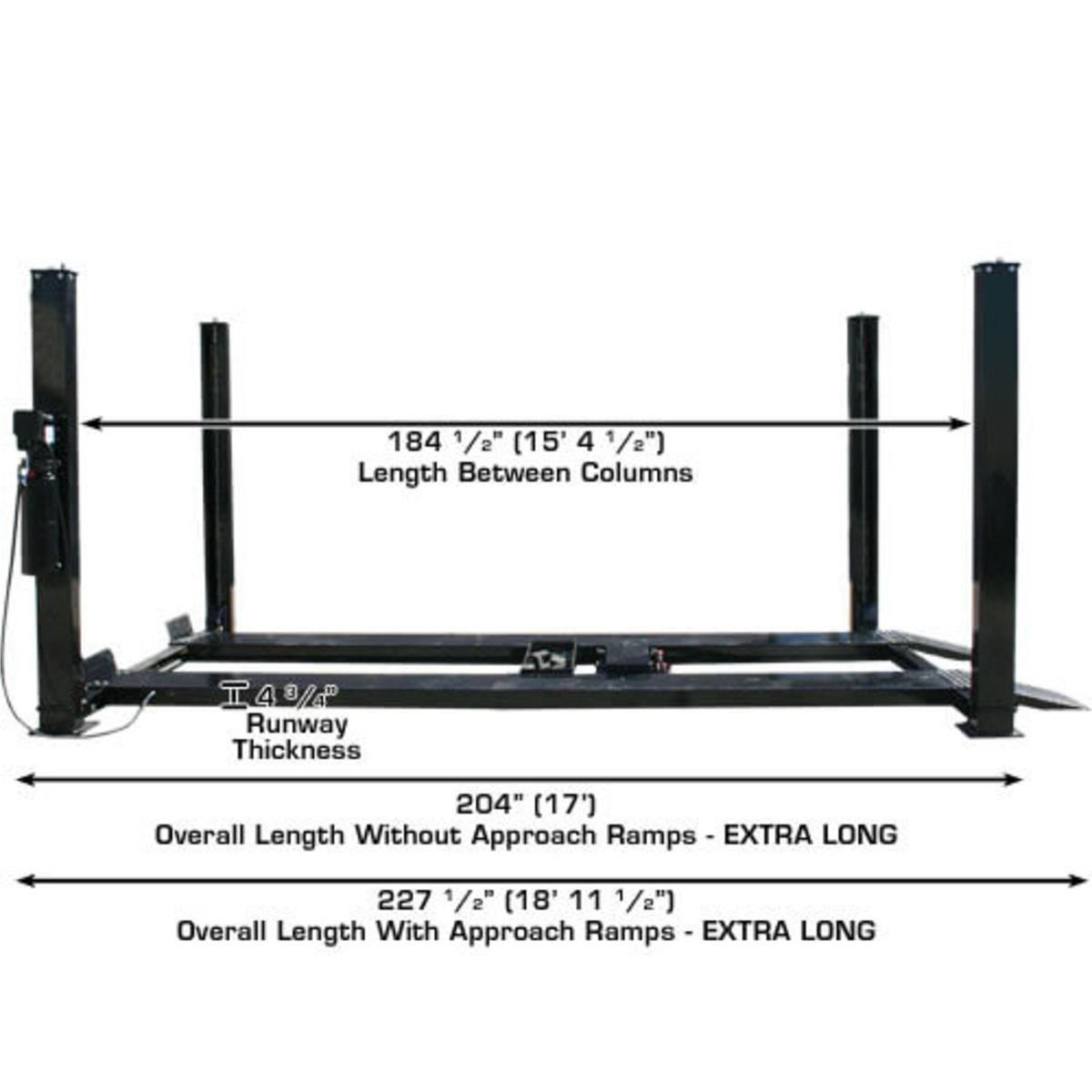

| Length Between Columns | 184 1/2" (15' 4 1/2") |
| Maximum Wheel Base | 187" (15' 7") |
| Drive-Thru (Outside of Tire to Outside of Tire) | 97 1/4" (8' 1 1/4") |
| Motor / Electrical Requirement | 110 Volt, 30 AMP BREAKER REQUIRED |
| Shipping Weight | 2,300 lb. |
-
