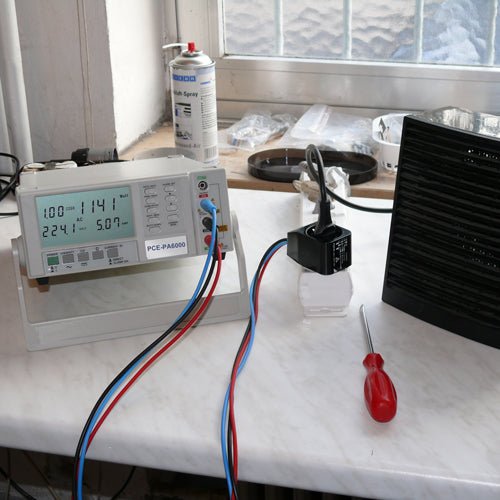

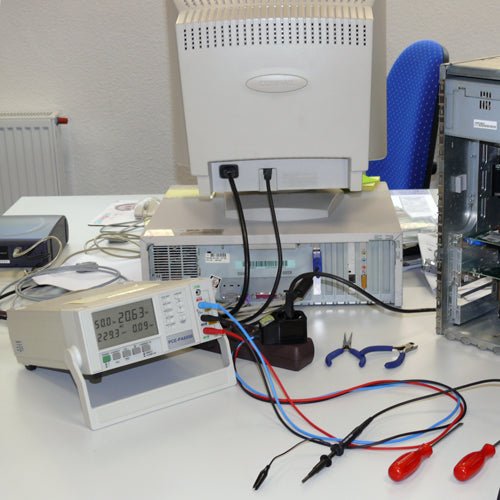

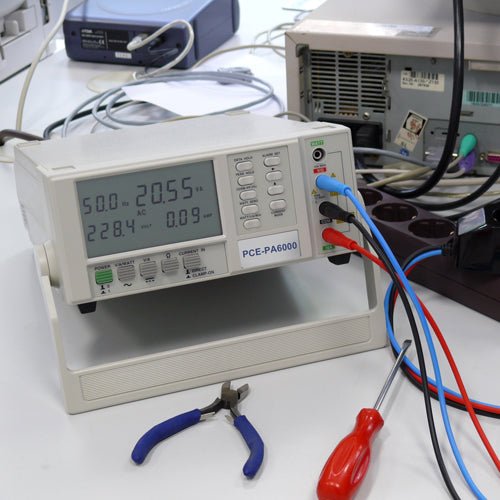

PCE PA6000 Desktop Power Meter Multimeter
Highlights:
- Desktop instrument
- RS-232 interface
- Software to analyze power consumption
The PCE PA6000 Desktop Power Meter Multimeter is a versatile tabletop device designed to measure effective power, apparent power, power factor, energy consumption, current, continuous voltage, resistance, and frequency. It also supports the connection of industrial current converters with a transmission ratio of 100/5A or 1000/5A. Featuring a large 93 x 52mm LCD, it displays a wide range of results, including Watts, cos φ, ACV, and ACA, making it easy to read. With the optional PCE-PA ADP current adapter (with ground wire, up to 10ACA), it enables safe and efficient measurements. Current and power can be measured directly using the included test cables or indirectly with clamps. The device includes an RS-232 interface and software* for data analysis and transfer to a computer, making it an ideal tool for workshops or for diagnosing power-related faults in devices.
Features:
- Multimeter function
- Measurement of direct current connecting a sensor head or current clamp
- Measures effective and apparent power
- Measures power factor
- Measures energy consumption (kWh)
- Data hold / Peak hold
- Function Hold / Alarm function High / Low
- Interface RS-232
- Powered by mains adaptor or batteries
- Safety standards: IEC-1010-1; CAT II 600V
Specifications:
- Function: Measurement range; Accuracy; Resolution
- Measurement of real power (AC, real value of power), direct measurement 1 W - 6 kW; 1 W; ±1.5 % + 5 dgt.
- Measurement of real power (AC, real value of power), with adapter ext. or current converter: 1 W ... 999.9 kW; 1 W; ±1.5 % + 5 dgt.
- Measurement of apparent power: (AC) 0.01VA to 9.999kVA; 0.01VA; ±2% +2 digit
- Power factor: (cos f) 0.00 to 1.00; 0.01; ±1.5% +2 digit
- KWh counter: 0.001Wh to 9,999kWh; 0.001Wh; ±1% +1 digit
- ACV / DCV: 0.1V to 600V; 0.1 / 1V; ±1% +1 digit (101 - 600V)
- ACA eff/rms And DCA eff/rms: direct maximum 10A; 10mA, with induction head max. 1,000A;1A; ±1% +3 digit
- ACA with clamps: up to 2,000A (depending on clamps)
- Frequency: 10.0 to 999Hz; 0.1Hz; 1% +1 digit
- Ohms: 1 ? to 19.99k?; 1 / 10 ?; ±1% +1 digit
- Display: 93 x 52mm multi functional LCD
- Operating conditions: max. 80% r.h. / 0 to 50°C / 32 to 122°F
- Power: 6 AA batteries or mains adapter
- Dimensions: 280 x 210 x 90 mm / 11 x 8.2 x 3.5 in
- Weight: 1,600 g / 56.4 oz
What’s included:
- 1 x PCE-PA6000 power Analyser
- 1 x Set of test cables 1 x RS-232 cable
- 6 x Batteries
- 1 x User's manual
