Highlights:
- PC software included
- Li-ion battery
- 3 different color spaces
- Determines reference values to compare to samples
- White and black calibration

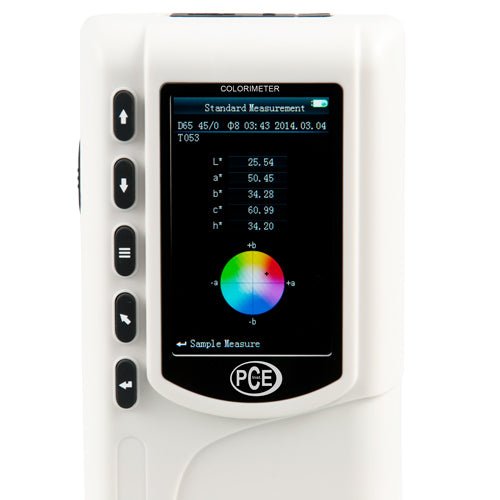

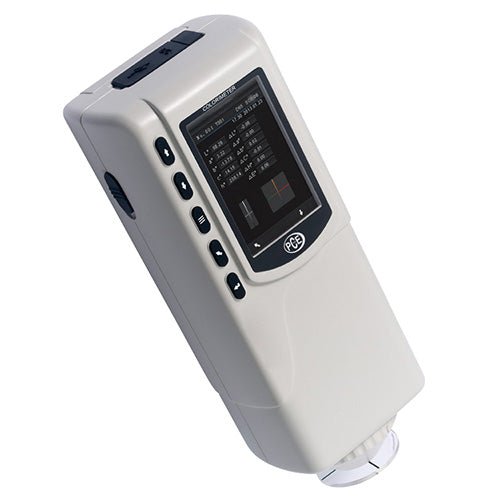

The PCE CSM 1 Color Meter is a portable device designed for quality control. It provides high accuracy and user-friendly operation. With this color meter, you can select from various color spaces (CIE LabCh, CIE Lab*, and CIE XYZ). After taking a measurement, the result can serve as a reference value, while additional readings can be recorded as samples and easily compared to the reference value later.
In addition to the individual color space coordinates, the deviation between the reading is also displayed. It's possible to store up to 100 reference values and up to 20,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.
Features:

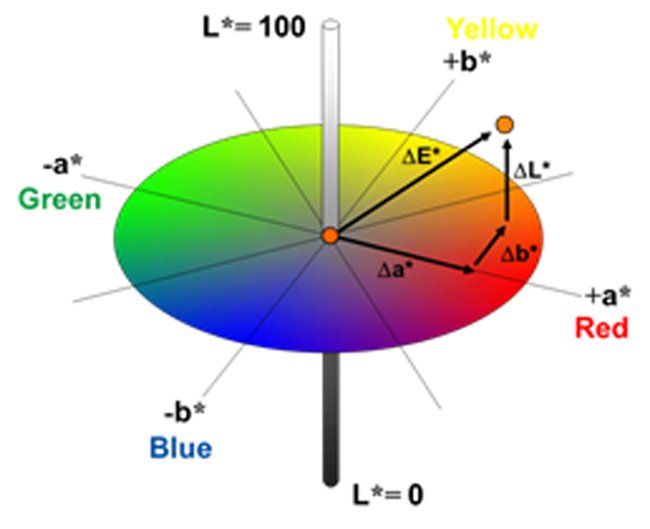

- CIE L*a*b*C*h, L*a*b* and XYZ
- Automatic white and black calibration
- Determines reference values to compare to samples
- Rechargeable Li-ion battery
- measuring of different colors
- Suitable for many different surfaces
- 8°/d geometry diffused illumination integrating sphere system illuminates sample from 8-degree angle
- Easy to use
- Incl. PC software
- 6 mm sample aperture
Specifications:
- Geometry: 8°/d
- Aperture: Ø 6 mm
- Sensor: Silicon photoelectric diode
- Color spaces: CIE L*a*b*C*h, CIE L*a*b, CIE XYZ
- Color difference formula ?E*ab, ?L*ab, ?E*C*H
- Observation Angle: CIE 10°
- Light source: D65
- Light source device: LED blue light
- Errors between each equipment: =0.80 ?E*ab
- Storage: 100 reference values, 20,000 samples
- Repeatability:
- Standard deviation within ?E*ab 0.08
- Average of 30 measurements of standard white plate
- Power supply: Rechargeable lithium-ion battery. 3.7 V @ 3200-mAh
- Charging time: 8 hours
- Battery life: Approx. 5,000 measurements
- Lamp life: 5 years, more than 1.6 million measurements
- Storage conditions:
- Air temperature: 0 - 40°C / 32 - 104°F
- Air humidity: 0 - 85% RH, non-condensing
- Dimensions: 205 x 67 x 80 mm / 8.07 x 2.63 x 3.14 in
- Weight: 500 g / 17.6 oz
What's Included:
- 1 x Colorimeter PCE-CSM 1
- 1 x USB cable
- 1 x Li-ion battery
- 1 x AC power adapter / charger
- 1 x Wrist band
- 1 x Calibration plate (white)
- 1 x Lens cap (serves as black calibration plate)
- 1 x Soft carrying case
- 1 x PC software
- 1 x User manual
Need more info? Please contact us or go to the PCE Resource Center.
